Laser Land Leveler Pro-5000

Celec Laser Land Leveler Pro-5000 is perfect for agriculture Land Leveling with Subsidy Approved. Laser leveler has sports model bucket with a Long-range laser transmitter 1500 meters (750 radius), Computerized self-calibration. In house manufacturing, Development, and testing center for Laser Land Levelers, Rotary laser level accuracy +/- 1 mm at 30 meters, Fuel consumption 4 Liters/hr. Wireless and touch control box with remote, Laser receiver working fully under HT lines, Accurate working of the rotary laser at high temperature. Get the maximum yield of crops using Celec Laser Land Leveler (computer manjha).

 Working7 feet (2.1 mtr)
Power40HP & above
Efficiency4.5 ltr/hour
 Range1500 meters
Hydraulic250 Bar, Adjustable
Operating Voltage12V DC
DisplayHours, Faults
ProtectionAll Electrical Protection
Tyre6.5 x 16
BladeBoron Carbon – 12mm thick

Laser Land Leveler

  • Working Width: 7 feet (2.1 meter)
  • Tractor Power: 50 HP
  • Efficiency 4.5 ltr/Hour
  • Working speed: 1500 RPM
  • Laser Range: 1500 mtr (750 mtr Radius)
  • Hyd. Pressure: 250 Bar Max
  • Blade: Special Steel 125×12 mm Reversible
  • Type: 600×16 Agriculture, 6.00-16
  • Operating Voltage: 12 Volt DC
  • Mast: Manual Gear/ Automatic Mast
  • Axel: 2 Axles, 4 Tyres, Cross Type

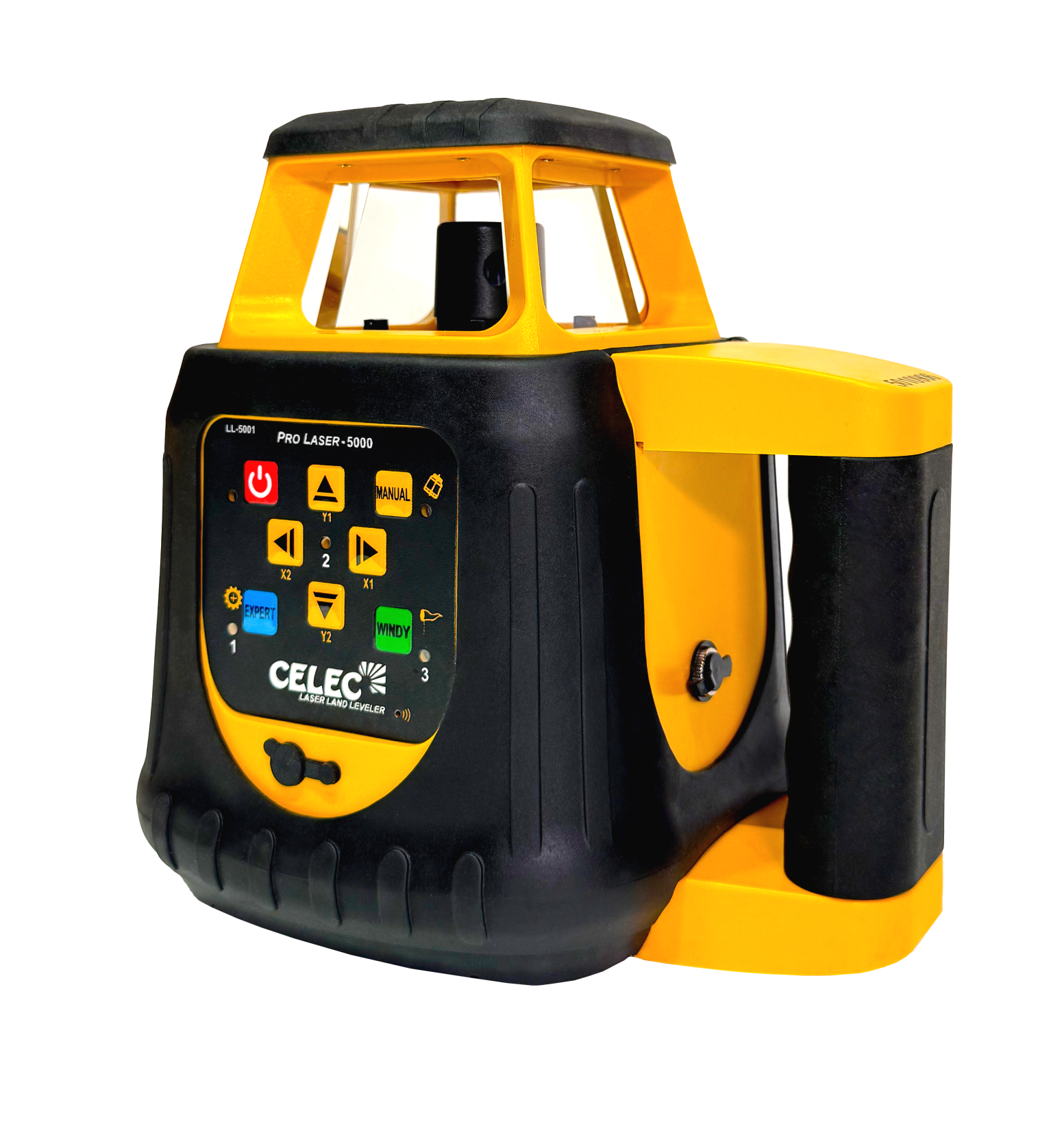

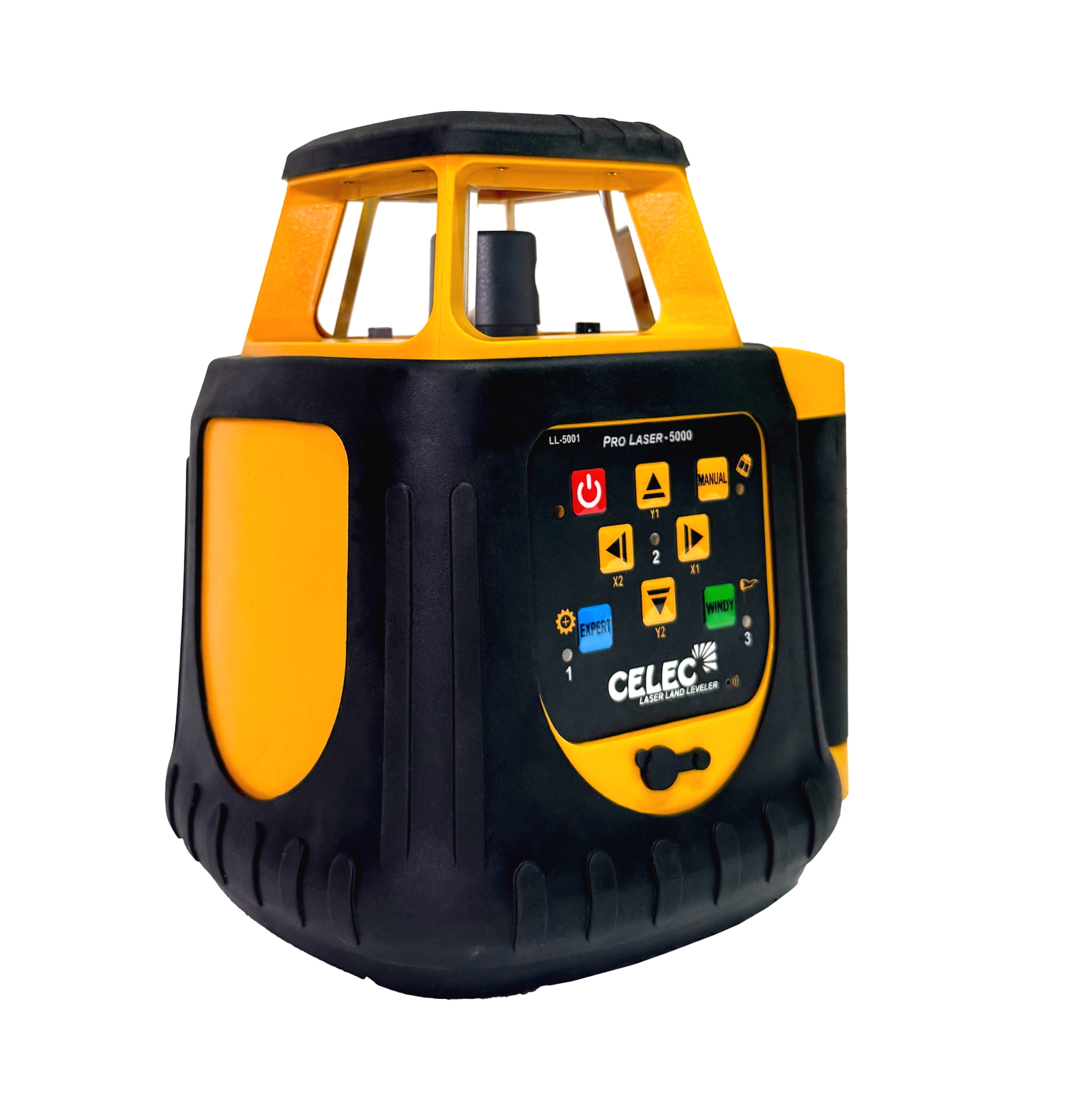

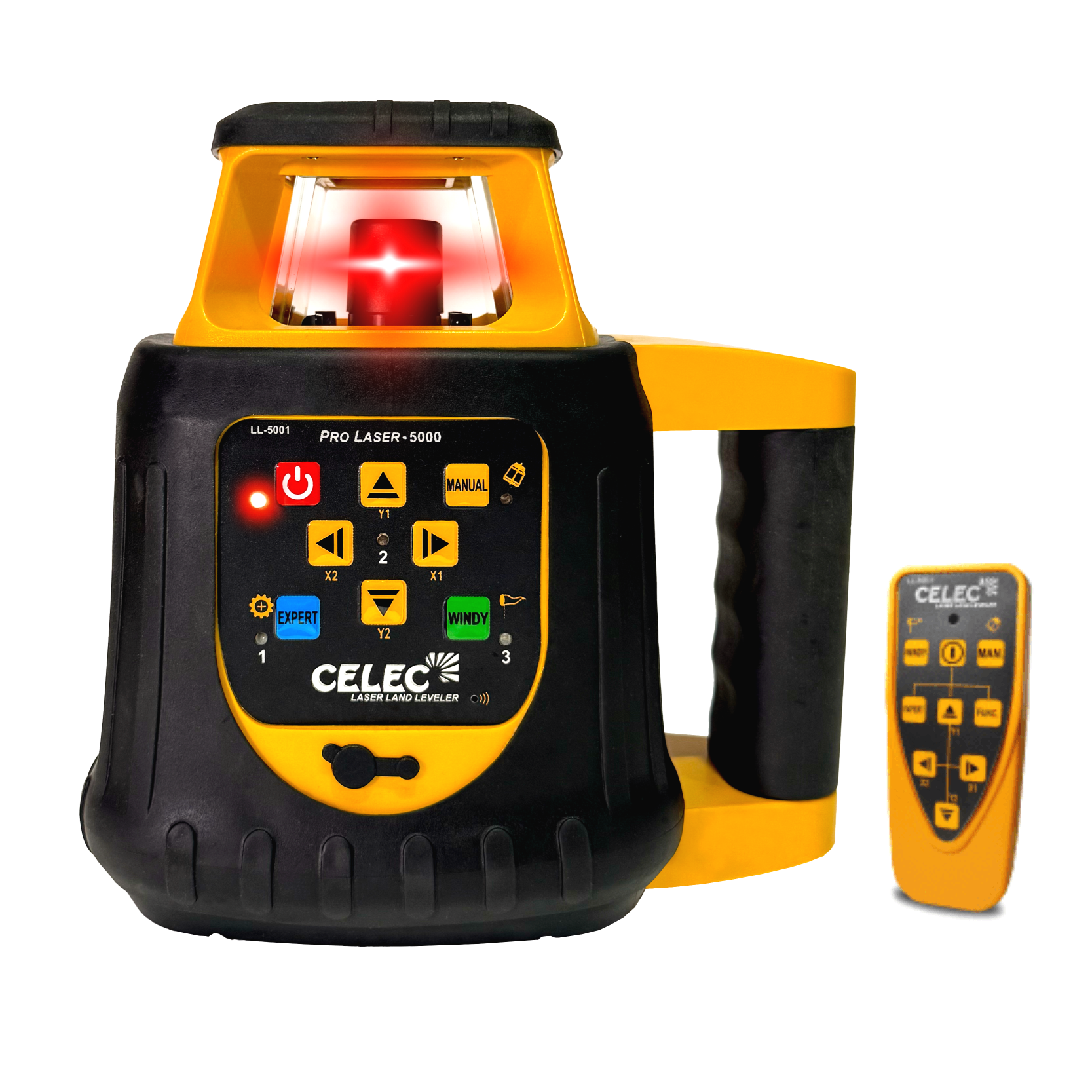

Rotary Laser Transmitter

  • Operating Range: 1500 meter (Radius 750 mtr)eature 1
  • Self – Leveling Accuracy**: ±1 mm @ 30 meters
  • Rotating Speed: 600 RPM
  • Laser Diode (type): 4.5 mW, Visible Red
  • Manual Tilt: Upto ± 7 degree Power 1 Watt
  • Battery: 12 V External
  • Battery Life: 72 Hours with Full Battery
  • Operating Temperature: 0 to 50° C
  • Storage Temperature: 0 to 60° C
  • Dust / Water Resistant: IP65
  • Protection: Over Voltage, Low Battery, Reverse polarity
  • Weight: 2.5 kgs
  • Dimensions: 200 x 250 x 175 mm

Rotary Laser Receiver

  • Voltage: 12V DC ± 20%
  • Max Current Consumption: 200 mA
  • System Accuracy: ±5 mm
  • Laser Requirement: All Rotating Lasers (HeNe or IR)
  • Dust / Water Resistance: IP65
  • Pulse Display: 10 Pulses per second
  • Protection: Reverse Polarity
  • Communication: 1 Wire
  • Weight: 2 Kg

Control Box

  • Display: Seven Segment LED, Visible in Day Light, Adjustable in Brightness
  • Switch: Tour Sensor Switch Suitable for Dusty Condition
  • System Accuracy: ±5 mm
  • Control: Programmable
  • Timer: Running Timer
  • Charge: For 12V Battery with Protection
  • Working Mode: 10 User Modes Programmable
  • Indications: Working Channel, Time & Errors (LED for Up, Down, Link & Auto)
  • Protection: IP65
  • Connectors: Silver coated, Chroe plated atll weather bend proof
  • System Voltage: 12V DC
  • Cable: 1.5 mm RR Kabel / Finolex
Celec laser land leveler testiomonial by customer
Celec customer review testimonials
Celec PRO-5000 laser leveler certified

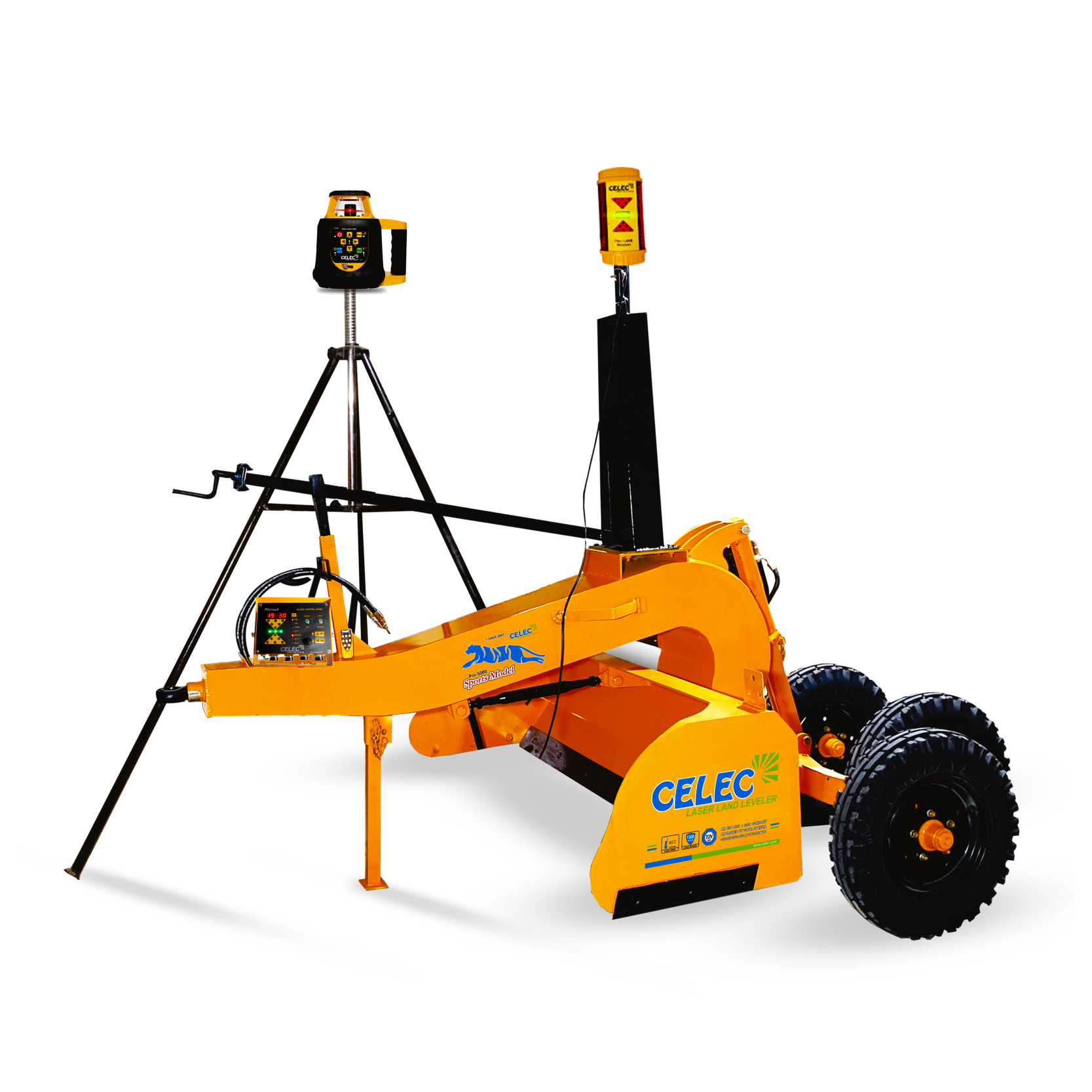

Celec PRO-5000 laser leveler complete set

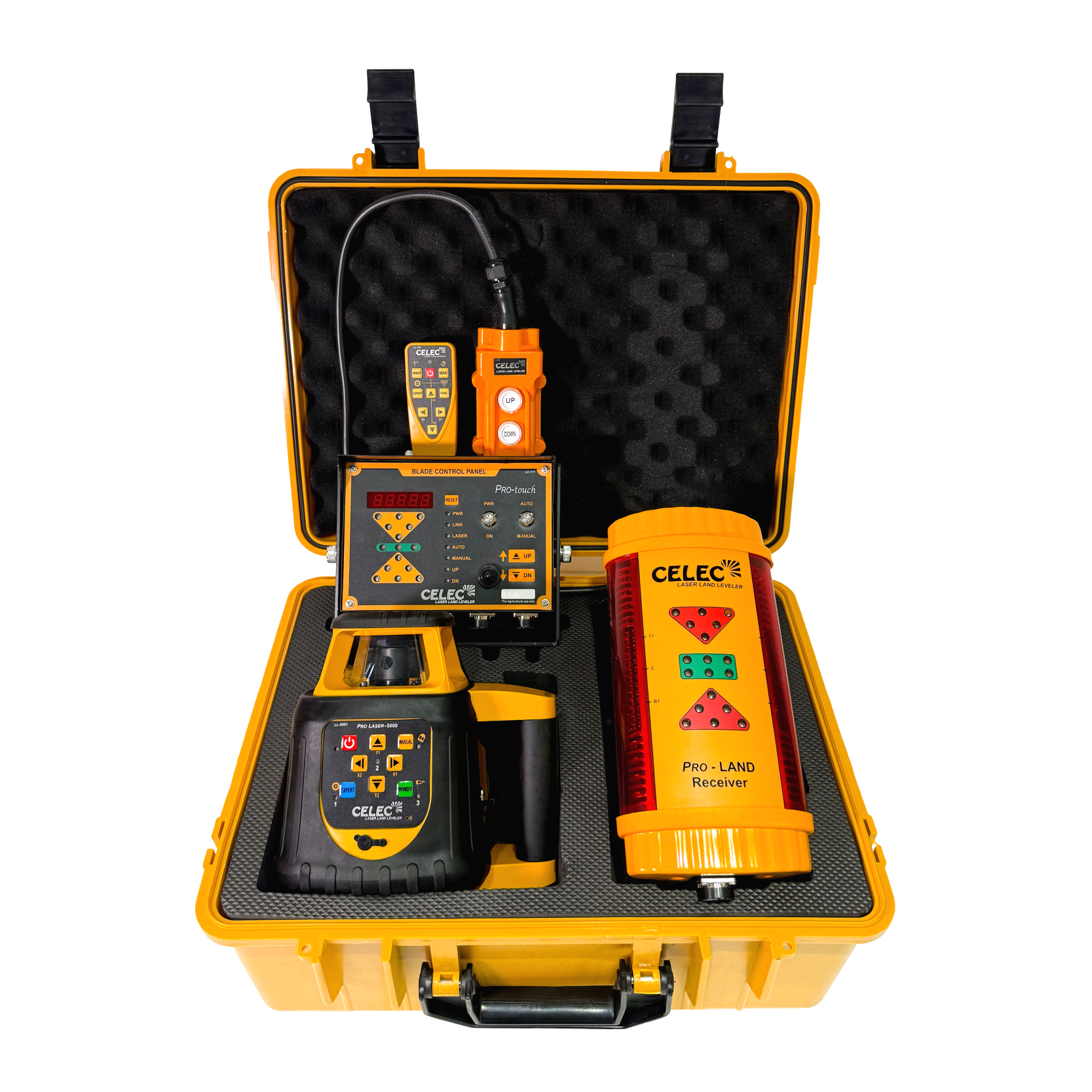

Celec PRO-5000 laser leveler transmitter receiver control box

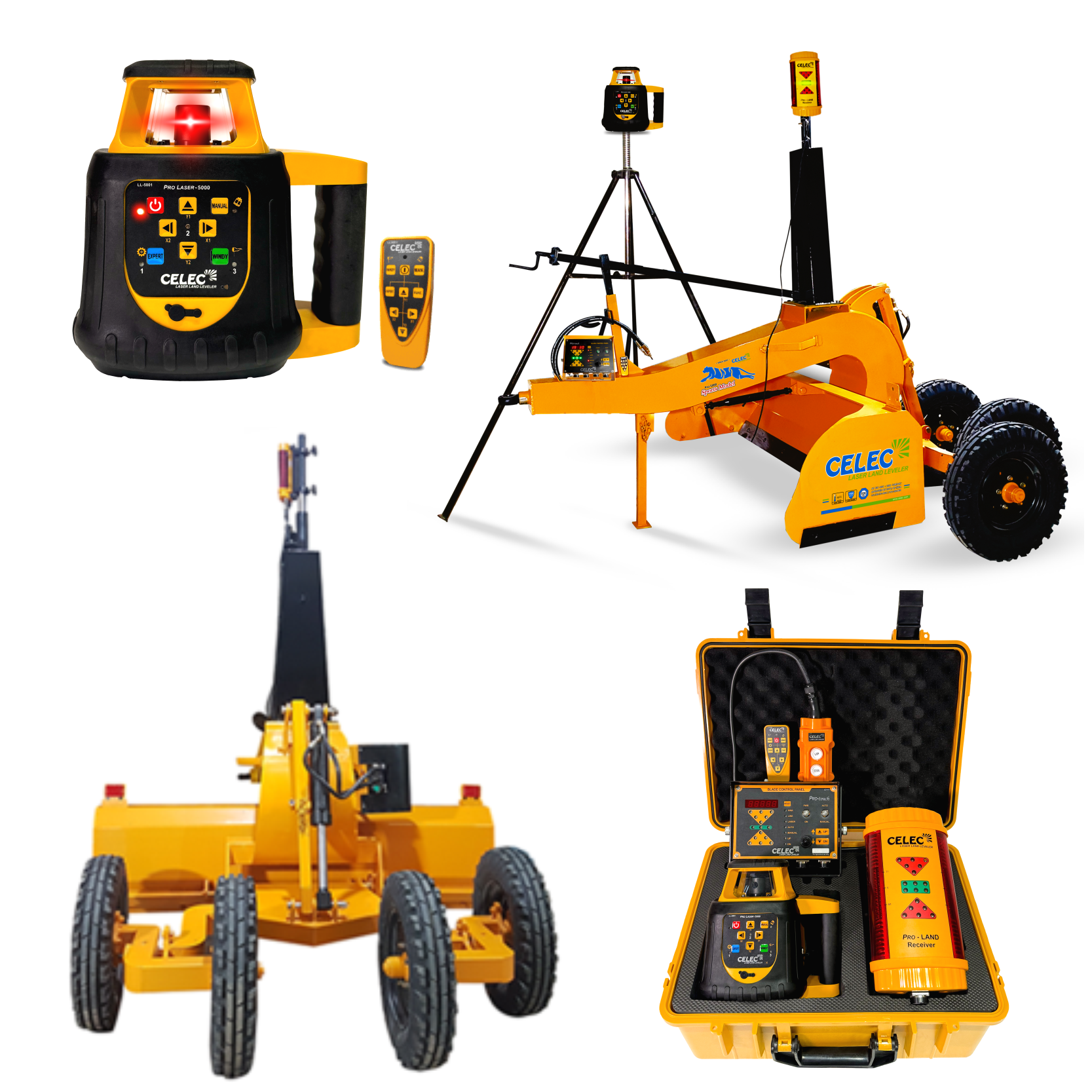

Celec PRO-5000 laser leveler kit varient

Laser Land Leveler Pro-5000 Catalog

Description

Laser Land Leveler Pro-5000

Celec Laser Land Leveler Pro-5000 is the first to introduce this technology for farms, fields, and lands in India with Subsidy approved. Celec Group is one of the leading manufacturers and exporters of agricultural lasers and levelers, aiming to ensure water savings. The company has a dedicated workforce with an unwavering commitment to quality and building a vibrant organization. All the technologies were developed by Celec to achieve the longest laser range, high efficiency, correct operation of the rotary laser at high temperatures, and low fuel consumption.

Laser Land Leveler Pro-5000 Model was first tested by our experts to ensure top quality. Moreover, the Celec laser land levelers is simple and easy to use. This makes it convenient for operators to do daily maintenance tasks quickly.

Also, the Celec laser-guided land leveler includes a rotary laser level transmitter, a touch control box with a remote, and a rotary laser receiver, offering a complete and reliable solution. In addition, we make the full set of laser land levelers, buckets, and electronic systems in-house at our head office in Ludhiana to ensure the best quality.

Features of Laser Land Leveler:-

  • Finest Touch Control for easy working.
  • Computerized self-calibration of laser guided land leveler in the field.
  • High power laser beam working up to 1500 meters (750 Meters Radius).
  • Laser Level accuracy ±1 mm at 30 meter.
  • Battery backup for 3 days.
  • Laser land leveler working under high temperature and magnetic field.
  • Waterproof, dust proof and temperature proof to work all-weather.
  • Housing made from LM-6 aluminum, rubber and high impact plastic.
  • Overvoltage and Reverse DC polarity protection.
  • Low Battery Detection.
  • Field-Programmable Slope.
  • All operations on remote and keyboard.

Advantages of  Laser Land leveller over traditional land leveling:-

  • Good germination and growth of the crop, uniformity in crop maturity.
  • Reduce seed rate, fertilizer, chemicals, and fuel requirements.
  • Conserve Water, Uniform Distribution of water.
  • Reduction in time as well as water required to irrigate the field.
  • Precise level and plane soil surface, easy land preparation.
  • Uniform distribution of water in the field, less water consumption.
  • Uniform moisture environment for crops, less problems.
  • Improve field traffic ability for the later field operations.

Benefits of precise laser land leveling using Celec Pro-5000:-

  • Saves irrigation water up to 35%.
  • Reduced weed in agriculture field.
  • Increase in farming area up to 3.5%.
  • Increase in productivity up to 50%.
  • Reduced farm operating time by 10%.
  • Assist tap soil management.
  • Saves fuel / electricity used in irrigation.
  • It saves labor cost.
