Laser Land Leveller Pro-8000

Celec group is the first to introduce the technology of Laser Land Leveller for Farm, Fields/Lands with Subsidy Approved. Celec is one of the leading manufacturers and exporters of Laser land leveler which aims to ensure water conservation. Entire technologies were developed by Celec to achieve the highest laser range, high efficiency and accurate working of the rotary laser at high temperature. In house manufacturing, Development, and testing center for Laser Land Levelers. Get the maximum yield of crops using Celec Laser Land Leveler.

 Working8 feet (2.4 mtr)
Suitable HP60 HP
Efficiency5 ltr/hour
 Range1500 meters
Hydraulic Pressure250 Bar Max
Operating Voltage12V DC

Laser Land Leveller

  • Working Width: 8 feet (2.4 meter)
  • Tractor Power: 50-60 HP
  • Efficiency 5 ltr/Hour
  • Working speed: 1500 RPM
  • Laser Range: 1500 mtr (750 mtr Radius)
  • Hyd. Pressure: 250 Bar Max
  • Blade: Special Steel 125×12 mm Reversible
  • Type: 600×16 Agriculture, 6.00-16
  • Operating Voltage: 12 Volt DC
  • Mast: Manual Gear/ Automatic Mast
  • Axel: 2 Axles, 4 Tyres, Cross Type

Rotary Laser Transmitter

  • Operating Range: 1500 meter (Radius 750 mtr)eature 1
  • Self – Leveling Accuracy**: ±1 mm @ 30 meters
  • Rotating Speed: 600 RPM
  • Laser Diode (type): 4.5 mW, Visible Red
  • Manual Tilt: Upto ± 7 degree Power 1 Watt
  • Battery: 12 V External
  • Battery Life: 72 Hours with Full Battery
  • Operating Temperature: 0 to 50° C
  • Storage Temperature: 0 to 60° C
  • Dust / Water Resistant: IP65
  • Protection: Over Voltage, Low Battery, Reverse polarity
  • Weight: 2.5 kgs
  • Dimensions: 200 x 250 x 175 mm

Rotary Laser Receiver

  • Voltage: 12V DC ± 20%
  • Max Current Consumption: 200 mA
  • System Accuracy: ±5 mm
  • Laser Requirement: All Rotating Lasers (HeNe or IR)
  • Dust / Water Resistance: IP65
  • Pulse Display: 10 Pulses per second
  • Protection: Reverse Polarity
  • Communication: 1 Wire
  • Weight: 2 Kg

Control Box

  • Display: Seven Segment LED, Visible in Day Light, Adjustable in Brightness
  • Switch: Tour Sensor Switch Suitable for Dusty Condition
  • System Accuracy: ±5 mm
  • Control: Programmable
  • Timer: Running Timer
  • Charge: For 12V Battery with Protection
  • Working Mode: 10 User Modes Programmable
  • Indications: Working Channel, Time & Errors (LED for Up, Down, Link & Auto)
  • Protection: IP65
  • Connectors: Silver coated, Chroe plated atll weather bend proof
  • System Voltage: 12V DC
  • Cable: 1.5 mm RR Kabel / Finolex

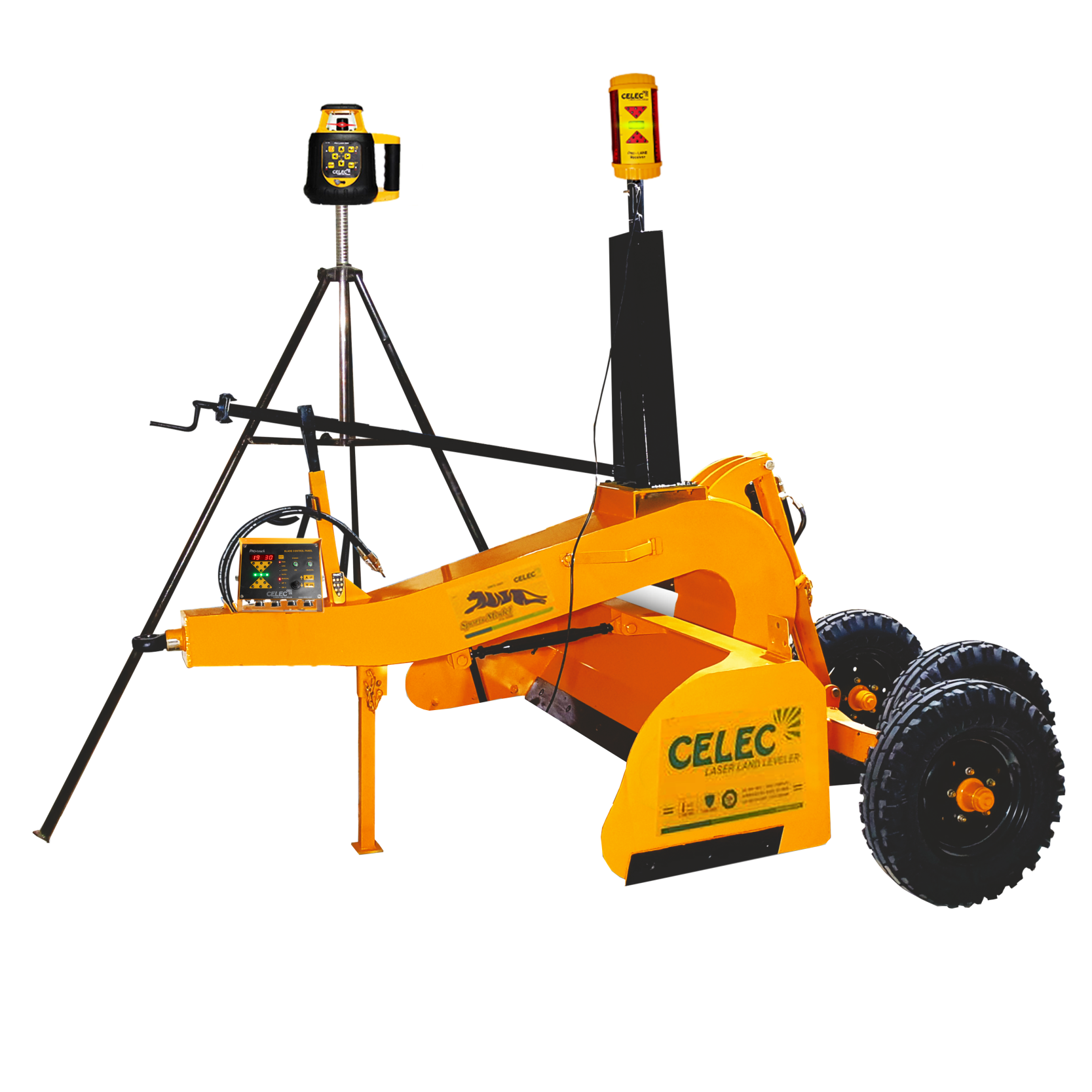

Laser Land Leveller Pro-8000

What is Laser Land Leveler?

Laser land Levellers is most advance technique for highest possible yield, crop-management, agronomic and water saving. A rotating laser leveler made to create a laser virtual plane above tractor so that tractor driven hydraulic land leveler follow the virtual level using laser receiver, move the soil to meet the zero land level throughout field. Laser Land Leveler consist of blade and bucket with act as soil cutter and distributor so that irrigation water spreads evenly. Laser Leveled surface of land has major impact on germination, stand, yield of crops, water moisture and most important saving of water up to 35%.

Celec group is the first to introduce the technology of Laser  Land leveller for Farm, Fields/Lands in India with Subsidy Approved. Celec is one of leading manufacturers of Laser land leveler which aim to ensure water conservation. Entire technologies are developed by Celec to achieve the highest laser range, high efficiency and accurate working of rotary laser at high temperature.

Celec Laser has been firstly tested and tried by our experts to ensure the quality. Especially the simplicity and accessibility of Celec laser land leveller allows operators to quickly perform daily maintenance tasks. Celec laser  land leveler comes with rotary laser, laser level transmitter, touch control box and rotary laser receiver.

Features of Laser Land Leveller Pro-8000:-

  • Finest Touch Control for easy working.
  • Computerized self-calibration of laser guided land leveller in field.
  • High power laser beam working up to 1500 mtrs (750 Mtrs Radius)
  • Laser Level accuracy ±1 mm at 30 meter.
  • Battery backup for 3 days.
  • Laser land leveler working under high temperature and magnetic field.
  • Water proof dust proof temperature proof to work all weather.
  • Housing made from LM-6 aluminium, rubber and high impact plastic.
  • Over voltage and Reverse DC polarity protection.
  • Low Battery Detection
  • Field Programmable Slope
  • All operations on remote and keyboard

Advantages of Laser Land Leveller Pro-8000 over traditional land leveling:

  • Good germination and growth of crop, uniformity in crop maturity
  • Reduce seed rate, fertilizer, chemicals, and fuel requirements
  • Conserve Water, Uniform Distribution of water.
  • Reduction in time and water required to irrigate the field
  • Precise level and smoother soil surface, easy land preparation
  • Uniform distribution of water in the field, less water consumption
  • Uniform moisture environment for crops, less problems
  • Improve field traffic ability for the subsequent field operations

Benefits of precise laser land leveling using Celec Pro-8000:

  • Saves irrigation water up to 35%
  • Reduced weed in agriculture field
  • Increase in farming area up to 3.5%
  • Increase in productivity up to 50%
  • Reduced farm operating time by 10%
  • Assist tap soil management
  • Saves fuel/electricity used in irrigation
  • Saves labour cost
