Laser Leveler Pro 5000 Wireless

Celec Group is a pioneer in introducing laser leveler technology to Indian farmers. Celec Red WiFi Laser Leveler System, developed, tested, and manufactured in our Ludhiana plant, offers superior laser range, high efficiency, and precise operation even in extreme temperatures and windy conditions. The Pro 5000 WiFi Laser Leveler features advanced wireless technology, allowing easy monitoring and control from the tractor-mounted control box. At Celec, we prioritize quality and are committed to providing our customers with the best, most reliable products for optimal performance.

The Pro 5000 Laser Leveler Kit Includes:-

  • Celec Pro 5000 Laser
  • Wireless and Touch Control Box
  • Laser Receiver
  • IR Remote
  • Control Box Remote
  • Cables

Pro 5000 Laser Leveler Features:-

Operating Range*1500 meter (Radius 750 mtr)
Self – Leveling Accuracy±1 mm @ 30 meters
Battery Life72 Hours with Full Battery
Dust / Water ResistanceIP65
Operating Temperature0 to 50° C
Wireless Range1000 meter

Specification

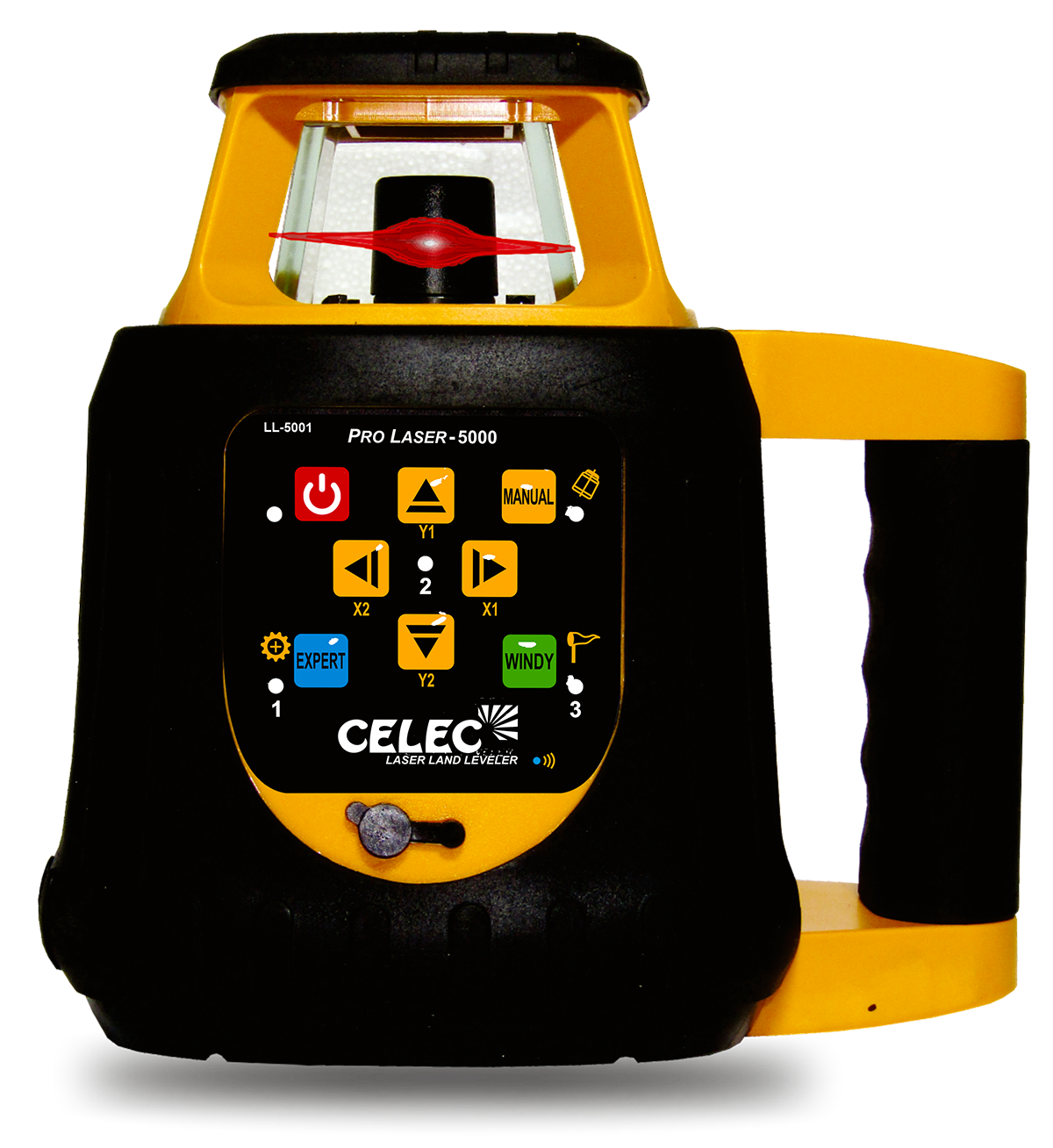

Rotary Transmitter

  • Operating Range*: 1500 meter (Radius 750 mtr)eature 1
  • Self – Leveling Accuracy**: ±1 mm @ 30 meters
  • Rotating Speed: 600 RPM
  • Laser Diode (type): 4.5 mW, Visible Red
  • Manual Tilt: Upto ± 7 degree Power 1 Watt
  • Battery: 12 V External
  • Battery Life: 72 Hours with Full Battery
  • Operating Temperature: 0 to 50° C
  • Storage Temperature: 0 to 60° C
  • Dust / Water Resistant: IP65
  • Protection: Over Voltage, Low Battery, Reverse polarity
  • Weight: 2.5 kgs
  • Dimensions: 200 x 250 x 175 mm

Receiver

  • Voltage: 12V DC ± 20%
  • Max Current Consumption: 200 mA
  • System Accuracy: ±5 mm
  • Laser Requirement: All Rotating Lasers (HeNe or IR)
  • Dust / Water Resistance: IP65
  • Pulse Display: 10 Pulses per second
  • Protection: Reverse Polarity
  • Communication: 1 Wire
  • Weight: 2 Kg

Control Box

  • Display: Seven Segment LED, Visible in Day Light, Adjustable in Brightness
  • Switch: Tour Sensor Switch Suitable for Dusty Condition
  • System Accuracy: ±5 mm
  • Control: Programmable
  • Timer: Running Timer
  • Charge: For 12V Battery with Protection
  • Working Mode: 10 User Modes Programmable
  • Indications: Working Channel, Time & Errors (LED for Up, Down, Link & Auto)
  • Protection: IP65
  • Connectors: Silver coated, Chroe plated atll weather bend proof
  • System Voltage: 12VDC
  • Cable: 1.5 mm RR Kabel / Finolex

Description

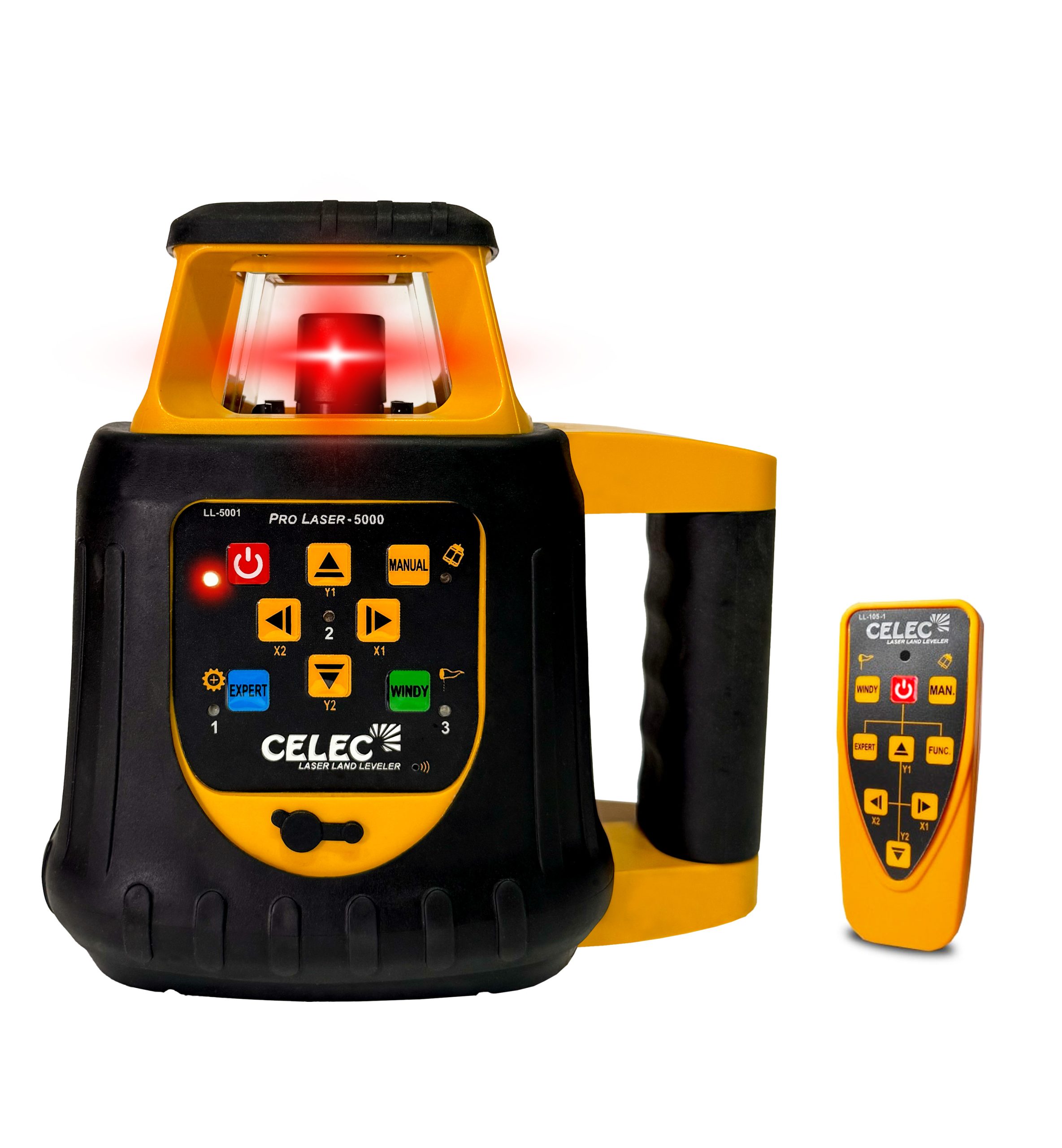

Laser Leveler Pro 5000

Work confidently with the Celec Laser Leveler Pro 5000 Red Wireless. This system is self-leveling, has a longer range as well as high accuracy. Moreover, It includes a Windy function with advanced Cross-Axis Compensation for consistent performance.

In fact, Celec was the first to introduce laser land leveling technology for farms and fields in India, with subsidy approvals. Aa a result, Celec has become one of the leading manufacturers and exporters of laser land levelers, focusing on water conservation. Furthermore, all technologies were developed to achieve the highest laser range, high efficiency, and reliable operation even in hot climates.

Laser Land Leveler Kit Benefits

The Celec laser kit is fully tested by our experts to ensure quality and easy maintenance. Its user-friendly design helps operators perform daily checks and servicing quickly.

Kit Includes:

  • Rotary laser transmitter
  • Wireless remote
  • Touch control box
  • Rotary laser receiver

Key Features

  • Waterproof, dustproof, and temperature-resistant for all-weather use.
  • Rugged housing made of LM-6 aluminum, rubber, and high-impact plastic
  • Over-voltage and reverse-polarity protection
  • Safe operation at low voltage
  • One-touch self-calibration in the field
  • High-power laser beam
  • Leveling accuracy of ±5 cm at 100 meters
  • Manual grade setting
  • External battery for up to 3 days of backup

As compared to traditional land leveling, this laser leveler offers many benefits:

  • Achieves precise and smooth soil surfaces, making land preparation easier
  • Saves time and water during irrigation
  • Distributes water more evenly, reducing consumption
  • Maintains uniform moisture for better crop health and fewer weeds
  • Improves germination and growth, with uniform crop maturity
  • Lowers seed, fertilizer, chemical, and fuel use
  • Improves field traffic conditions for later farm work
