Dual Slope Laser Kit

Celec Group is among the first companies to introduce the dual slope laser technology for the farmers of India. The entire technology of slope laser level has been developed, tested and manufactured in our laboratory in Ludhiana, Punjab. We have developed wireless technology for our dual slope laser lineup, which helps to monitor and control the slope laser operation from the tractor mounted control box. Celec also understands that quality matters quite a lot to our customers and we promise our customers that we will provide the best quality products.

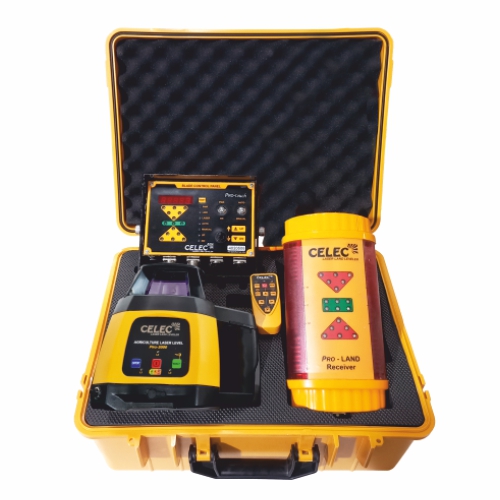

The Dual Slope Laser Kit Includes:-

  • Celec Dual Slope Laser
  • Wireless and Touch Control Box
  • Dual slope Laser Receiver
  • IR Dual Slope Laser Remote
  • Control Box Remote
  • Cables
  • Wireless Antenna
Dual Slope Laser Features:-

Operating Range* 1500 meter (Radius 750 mtr)
Slope Setting Parameters
Inch 50 inch
Percentage ± 5%
Wireless Range 1000 meter
Battery Life 8 to 10 Hours
Operating Temperature 0 to ± 50° C
Dust / Water Resistant IP65

Slope Laser Leveler.

Operating Range* 1500 meter (Radius 750 mtr)
Slope Setting Parameters
Inch 50 inch
Percentage ±5%
Dual Remote
IR Remote 30 meters
2.4 Ghz Remote from Control Box 500 meters
Rotating Speed 600 RPM (Fixed)
Display LCD 16×2 Character
Laser Diode (type) 5 mW, (Visible Red)
Battery 12 V External (2V-7AH)
Battery Life  8-10 Hours with Full Battery
Operating Temperature 0 to  ±50° C
Storage Temperature 0 to  ± 60° C
Dust / Water Resistant IP65
Protection Low Battery, Reverse polarity
Weight 2.7 kgs
Dimensions 230 x 190 x 225 mm

Touch Control Box

Model Pro-Touch Slope
LED Bar 16 LEDS
Controls Combination of Touch, Lift Remote & Switch
Display Available, Programmable
Grade Seven Segment LED, Visible in Day Light
Switch Touch Sensor Switch suitable for Dusty Condition
System Accuracy ±5 mm
Protection All Output Channels With short circuit Protection
Timer Running Timer, Last Time, Total Working Hours
Charge For 12V Battery with Protection
Working Indicator Laser ON, LIN with Receiver, Auto, Manual, Up, Down
Indicator Working channel, Time & Errors (LED for Up, Down, Link & Auto)
Protection IP62
System Voltage 12Vdc

Model PRO-Land
Voltage Range 12V DC ± 20%
Max Current Consumption  200 mA
System Accuracy ± 5 mm Adjustable
Laser Requirement All Rotating Lasers (HeNe or IR)
Dust / Water Resistance IP65
Pulse Display  10 Pulses per second
Protection Reverse Polarity
Communication 1 Wire
Weight 2 Kg

Description

Dual Slope Laser Land Leveller Kit Pro-7000

Work Confidently with Dual Slope Laser Land Leveler Kit Pro-7000 from Celec Enterprises Self Leveling, Long Range, Highly Accurate with Windy function and the Innovative Cross-Axis Compensation Feature.

Package Includes: Rotary Laser transmitter, Rotary Laser Receiver, Control Box, Remote, Battery Charger, Manual Grade options.

Celec group is the first to introduce the technology of Laser Land Leveler for Farm, Fields/Lands in India with Subsidy Approved. Celec is one of leading manufacturers and exporters of Laser land leveller which aim to ensure water conservation. Entire technologies were developed by Celec to achieve the highest laser range, high efficiency and accurate working of rotary laser at high temperature.

Dual Slope Laser Land leveler Kit  – Celec Laser has been firstly tested and tried by our experts to ensure the quality. The simplicity and accessibility of Celec laser land leveler allows operators to quickly perform daily maintenance tasks. Celec laser land levelers comes with rotary laser, Rotary laser transmitter, wireless remote, touch control box and rotary laser receiver.

Working of Laser land leveller – https://www.youtube.com/watch?v=Aya7Dsm6_qg&t=13s

Features of Laser Land Leveller Kit Pro-Land:

  • Water proof dust proof temperature proof to work all weather.
  • Housing made from LM-6 aluminium, rubber and high impact plastic.
  • Over voltage and DC polarity protection.
  • Low voltage safe working.
  • One touch self-calibration infield.
  • High power laser beam.
  • Leveling accuracy ±5 cm @ 100 meter.
  • Manual grade.
  • External battery tor 3 days backup.

Advantages of laser land leveling over traditional land levelling:-

  • Precise level and smoother soil surface, easy land preparation.
  • Reduction in time and water required to irrigate the field.
  • Uniform distribution of water in the field, less water consumption.
  • Uniform moisture environment for crops, less weed problems.
  • Good germination and growth of crop, uniformity in crop maturity.
  • Reduce seed rate, fertilizer, chemicals, and fuel requirements.
  • Improve field traffic ability for the subsequent field operations.
