3.3 kVAr
Total Capacity
Reduce your Home Electric Bills
240 V
Split-Phase, 60 Hz
6 steps
Individaully controlled
200 A
Recommended Facility
MODEL ES-1
- Full Load Current
- 14.6 A
- Operating ambient
- Up to 40° C
- Dimensions
- 12" x 8"
- Mounting
- Type-1, Wall Mounting
- Weight
- 15.5lbs
- Sensing
- Current Sensor
- kVAr Steps
- 0.11,0.22,0.44, (0.88 x 3)
Automatically generates capacitor combinations. Controls capacitor bank to maintain power factor. Individual switching of each capacitor.

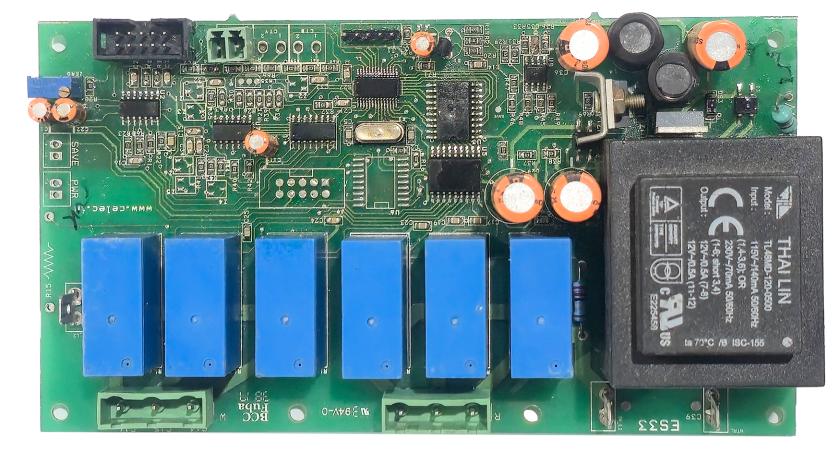

- Controlled by Celec Digital Power Factor Regulator
CELEC Electricity Saving Box ES-1
Smart power factor correction for residential systems
The CELEC ES-1 is a 240V single-phase smart energy saver that improves power factor, manages reactive power and enhances power quality in homes. Its intelligent capacitance control responds to changing loads automatically, while a digital display and current sensors provide real-time monitoring of key electrical parameters.
It supports efficient operation of inductive appliances such as air conditioners, refrigerators, washing machines, HVAC systems and motors, and works alongside solar panels, wind turbines and inverters as part of a home energy-management system.
Key Features
- Digital display for electrical and power-factor parameters
- Intelligent capacitance control for varying loads
- Easy installation with pluggable current sensors
- Optional power logger for performance monitoring
- Surge and transient-voltage protection*
- Electrical noise and disturbance filtering*
- Designed for residential 240V, 60 Hz systems
Key Benefits
- Improved electrical efficiency and power quality
- Reduced reactive power demand where applicable
- Less unnecessary current in the electrical system
- Longer equipment operating life
- Compatible with solar and wind installations
*Protection and filtering performance depends on the complete electrical installation and applicable product specifications.
CELEC ES-1 Technical Specifications
| Specification | Details |
| Model / Order Code | ES-1 |
| Applicable Load | Up to 200 A |
| Power Rating | 3.3 kVAr |
| Voltage Rating | 240 V AC |
| Frequency | 60 Hz |
| Full-Load Current | 14.6 A |
| Operating Ambient Temperature | Up to 40°C |
| Number of Steps | 6 |
| Step Rating | 0.11, 0.22, 0.44, 0.88, 0.88, 0.88 kVAr |
| Dimensions (W × H × D) | 12 × 8 × 5 in |
| Weight | 7 kg (15.4 lb) |
| Enclosure / Mounting | Type 1, wall-mounted |
