laser Leveller Pro-7000 Dual slope Celec 1500 meters

xxx

xxx

Red light indicator pro land receiver

xxx

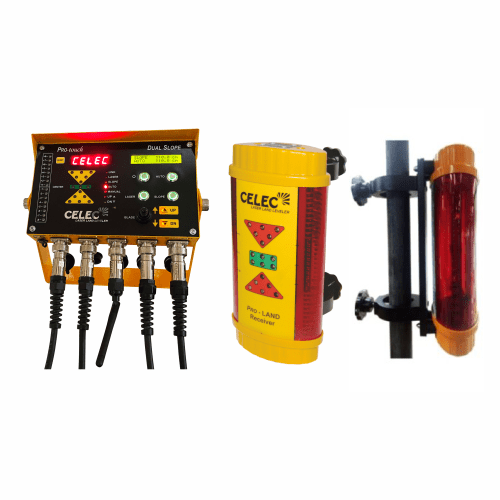

Celec wireless touch control box for dual solpe system

xxx

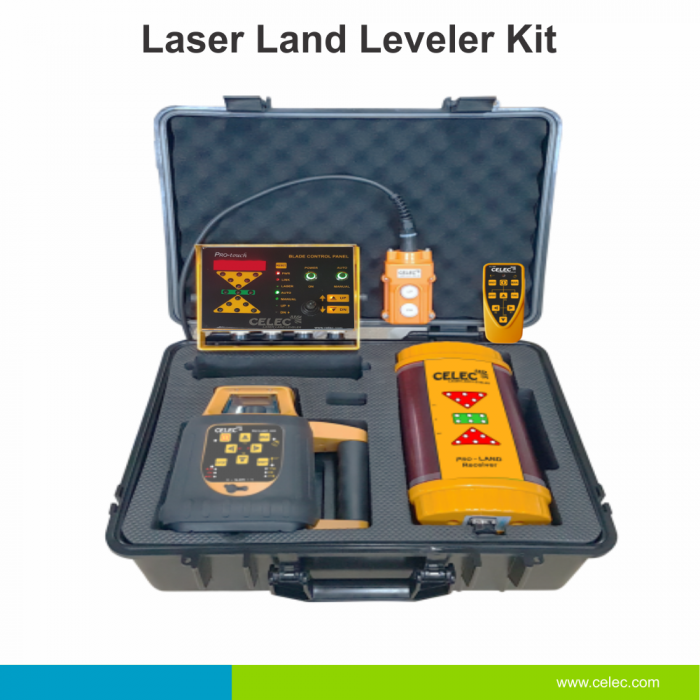

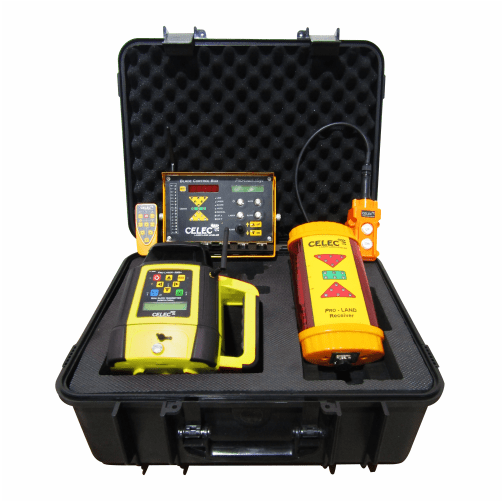

Laser Leveller kit Pro 7000

Celec laser land leveler, Agriculture Land Leveler Pro-7000 is perfect for Land Leveling, Subsidy approved in USA, Long range laser transmitter 1500 meters (750 radius), Computerized self calibration, In house manufacturing, Development and testing center for Laser Land Levelers, Rotary laser level accuracy +/- 1 mm at 30 meters,  Fuel consumption 4 Liters/hr. Wireless and touch control, Laser receiver working fully under HT lines, Accurate working of rotary laser at high temperature. Get the maximum yield of crops using Celec Laser Land Leveler.

Working7 Feet (2.1 mtr)
Tractor Power50 HP
Efficiency4.5 ltr / Hour
Range1500 mtrs (750 mtr Radius)
Hydraulic Pressure250 Bar Max
BladeSpecial Steel-125x12mm, Reversible
Tyre, Type6.00*16
MastManual Gear / Electronic Mast
Axel4 Axels, 4 Tyres, Cross Type



Category:

Laser Leveller Pro-7000

  • Working Width: 7 feet (2.1 meter)
  • Tractor Power: 50 HP
  • Efficiency 4.5 ltr/Hour
  • Working speed: 1500 RPM
  • Laser Range: 1000 mtr (500 mtr Radius)
  • Hyd. Pressure: 250 Bar Max
  • Blade: Special Steel 125×12 mm Reversible
  • Type: 600×16 Agriculture, 6.00-16
  • Operating Voltage: 12 Volt DC
  • Mast: Manual Gear/ Automatic Mast
  • Axel: 2 Axles, 4 Tyres, Cross Type

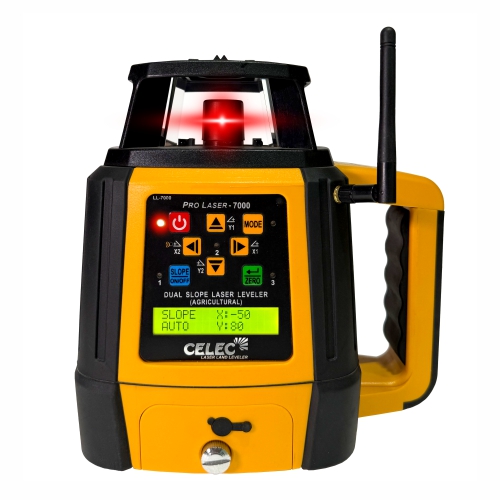

Rotary Laser Transmitter

  • Operating Range: 1500 meter (Radius 750 mtr)eature 1
  • Self – Leveling Accuracy**: ±1 mm @ 30 meters
  • Rotating Speed: 600 RPM
  • Laser Diode (type): 4.5 mW, Visible Red
  • Manual Tilt: Upto ± 7 degree Power 1 Watt
  • Battery: 12 V External
  • Battery Life: 72 Hours with Full Battery
  • Operating Temperature: 0 to 50° C
  • Storage Temperature: 0 to 60° C
  • Dust / Water Resistant: IP65
  • Protection: Over Voltage, Low Battery, Reverse polarity
  • Weight: 2.5 kgs
  • Dimensions: 200 x 250 x 175 mm

Rotary Laser Receiver

  • Voltage: 12V DC ± 20%
  • Max Current Consumption: 200 mA
  • System Accuracy: ±5 mm
  • Laser Requirement: All Rotating Lasers (HeNe or IR)
  • Dust / Water Resistance: IP65
  • Pulse Display: 10 Pulses per second
  • Protection: Reverse Polarity
  • Communication: 1 Wire
  • Weight: 2 Kg

Control Box

  • Display: Seven Segment LED, Visible in Day Light, Adjustable in Brightness
  • Switch: Tour Sensor Switch Suitable for Dusty Condition
  • System Accuracy: ±5 mm
  • Control: Programmable
  • Timer: Running Timer
  • Charge: For 12V Battery with Protection
  • Working Mode: 10 User Modes Programmable
  • Indications: Working Channel, Time & Errors (LED for Up, Down, Link & Auto)
  • Protection: IP65
  • Connectors: Silver coated, Chroe plated atll weather bend proof
  • System Voltage: 12V DC
  • Cable: 1.5 mm RR Kabel / Finolex

Description

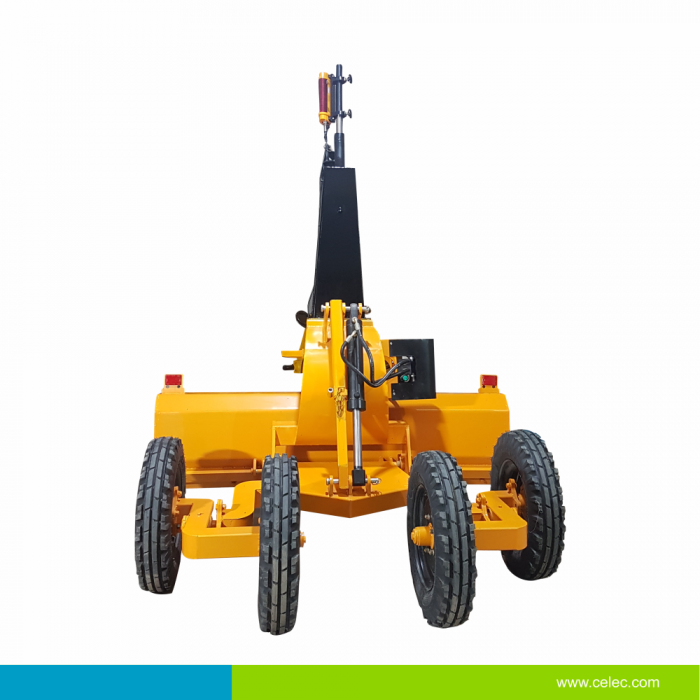

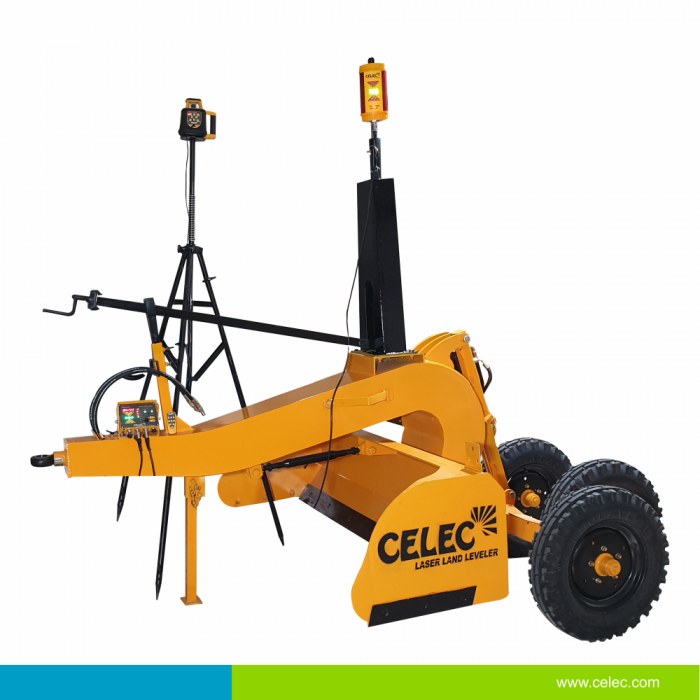

Laser Leveller Pro 7000

Celec group is the first to introduce the technology of Slope Laser leveller for Farm, Fields/Lands in India with Subsidy Approved. Celec is one of leading manufacturers and exporters of Slope Laser leveler which aim to ensure the water conservation. Company has dedicated workforce with unwavering commitment to quality and building a vibrant organisation. All the technologies were developed by Celec to meet the highest laser range, high-efficiency, correct working of rotary laser at high temperature and low fuel consumption.

Slope Laser Level Pro-7000 Model has been first tested and tried by our experts to make sure the quality without a doubt. Especially the simplicity and accessibility of Celec slope laser leveller allows operators to quickly do daily maintenance tasks. laser guided land leveler comes with rotary laser, laser level transmitter, touch control box and rotary laser receiver.

Check out our latest video on working Laser Land Leveller

Features of Laser Leveller Pro 7000:

  • Finest Touch Control for easy working.
  • Computerized self calibration of laser land leveler in field.
  • High power laser beam working up to 1500 mtrs (750 Mtrs Radius)
  • Laser Level accuracy ±1 mm at 30 meter.
  • Battery backup for 3 days.
  • Laser land leveler working under high temperature and magnetic field.
  • Water proof dust proof temperature proof to work all weather.
  • Housing made from LM-6 aluminum, rubber and high impact plastic.
  • Over voltage and Reverse DC polarity protection.
  • Low Battery Detection
  • Field Programmable Slope
  • All operations on remote and keyboard

Advantages of laser land levelers over traditional land leveling:

  • Good germination and growth of crop, uniformity in crop maturity
  • Reduce seed rate, fertilizer, chemicals, and fuel requirements
  • Conserve Water, Uniform Distribution of water.
  • Reduction in time and water required to irrigate the field
  • Precise level and smoother soil surface, easy land preparation
  • Uniform distribution of water in the field, less water consumption
  • Uniform moisture environment for crops, less problems
  • Improve field traffic ability for the subsequent field operations

Benefits of precise laser land leveling using Celec Pro-7000:

  • Saves irrigation water up to 35%
  • Reduced weed in agriculture field
  • Increase in farming area up to 3.5%
  • Increase in productivity up to 50%
  • Reduced farm operating time by 10%
  • Assist tap soil management
  • Saves fuel/electricity used in irrigation
  • Saves labor cost
