POWER FACTOR CORRECTION
CELEC Automatic Power Factor Correction (APFC) Systems
Lower bills and penalties, free up capacity and protect your equipment.

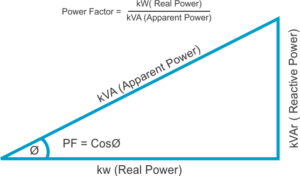

How it works
CELEC APFC panels monitor your load continuously and automatically switch capacitor steps to maintain your target power factor, whether your facility is running light or at peak demand.
Panels are UL listed to UL 508A (File E348393).
Why facilities choose CELEC
- Avoid power factor penalties and reduce kVA demand charges where your utility bills for them
- Lower kVAh units charges where utility bills charged in kVAh
- Reduce stress on equipment and the risk of unplanned downtime
- Lower energy use and associated emissions
- Reduce current and copper losses in upstream cables and transformers
- Free up capacity on existing transformers and feeders
Built for changing loads
CELEC systems track reload in real time and control contactor switching across 6 to 12 steps, with a response of 5 seconds . This suits utilities with motors, compressors, welders and other fluctuating loads.
Monitoring you can see
Monitoring displays all parameters V, A, PF, kW, Kva, kwh, kvh and system performance, plus THD and harmonics up to the 31st, can be monitored online in electrical system.
| Model | Rating |
|---|---|

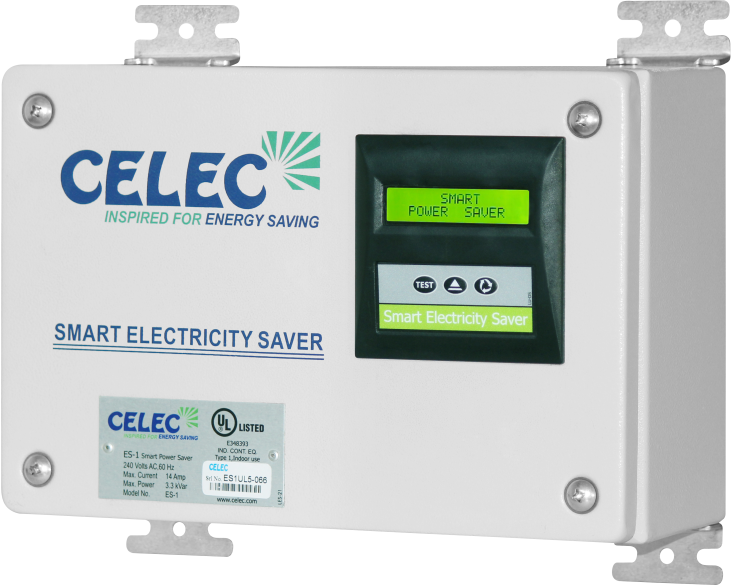

| ES-1 | 3.3 kVAr |
| ES-11 | 11 kVAr |
240 V / 120 V Split-Phase
Residential & Shops
| Specifications | ES-1 | ES-11 |
|---|---|---|
| Device Rating | 3.3 kVAr | 11 kVAr |
| Device Amps | 14.6 Amps. | 42 Amps. |
| CT Amps. | 200 Amps. | 400 Amps. |
| Steps | 6 | 9 |
| kVAr per Step | 0.11, 0.22, 0.44, (0.88 x 3) | 0.11, 0.22, 0.44, (0.88 x 3), (2.61 x 3) |
| Size - Weight | 12” x 8” - 15.5 lbs | 16” x 20” - 37.5 lbs |
| Model | Rating |
|---|---|

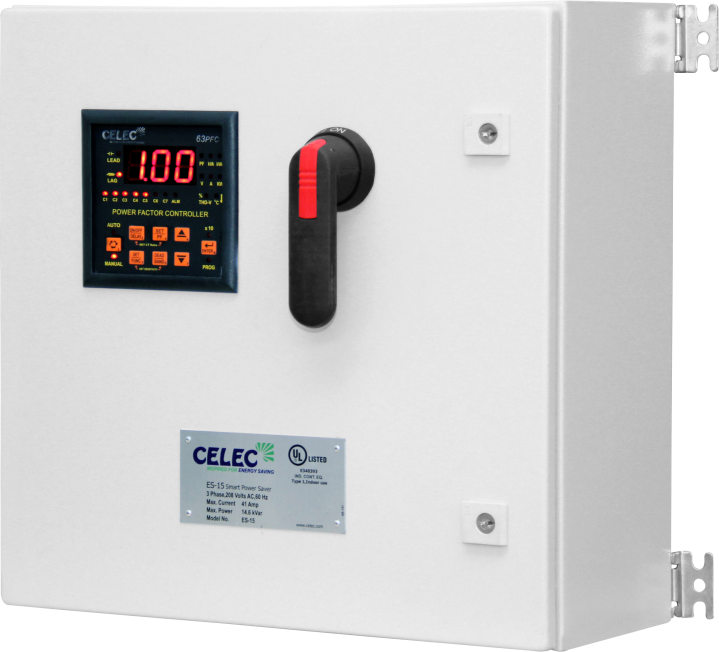

| S-15 | 15 kVAr |
208 V, 3-Phase
Residential & Small Business
| Specifications | S-15 | |
|---|---|---|
| Device Rating | 15 kVAr | |
| Device Amps | 41 Amps. | |
| CT Amps. | 400 Amps. | |
| Steps | 5 | |
| kVAr per Step | 1, 2, 4, 4, 4 | |
| Size - Weight | 20” x 20” - 83 lbs | |
| Model | Rating |
|---|---|

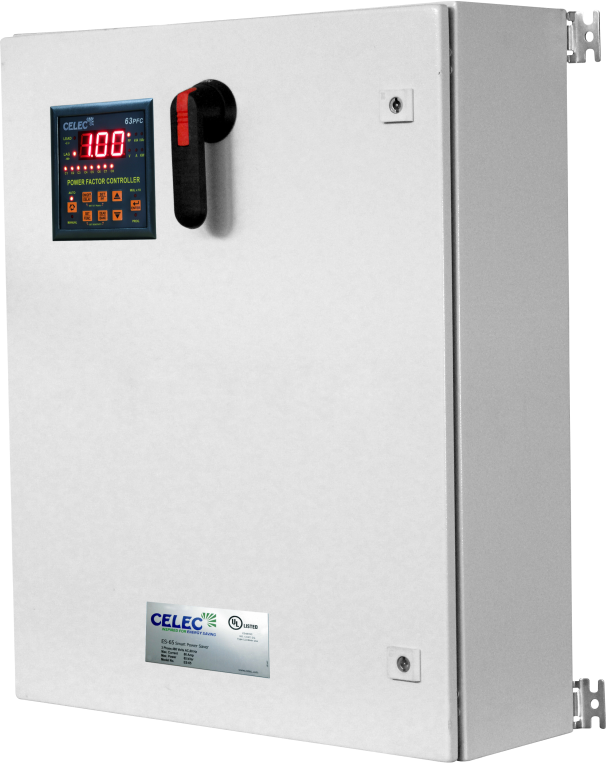

| S-25 | 25 kVAr |
208 V, 3-Phase
Industrial & Commercial
| Specifications | S-25 | |
|---|---|---|
| Device Rating | 25 kVAr | |
| Device Amps | 70 Amps. | |
| CT Amps. | 600 Amps. | |
| Steps | 6 | |
| kVAr per Step | 1, 2, 4, 6, 6, 6 | |
| Size - Weight | 24” x 30” - 137 lbs | |
| Model | Rating |
|---|---|

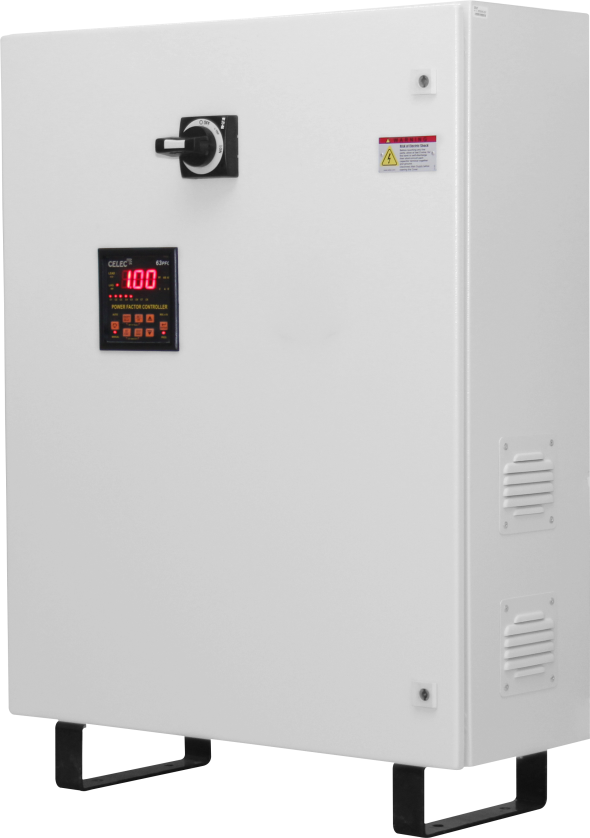

| S-50 | 50 kVAr |
208 V, 3-Phase
Gas Stations & Small Commercial
| Specifications | S-50 | |
|---|---|---|
| Device Rating | 50 kVAr | |
| Device Amps | 140 Amps. | |
| CT Amps. | 1000 Amps | |
| Steps | 7 | |
| kVAr per Step | 3, 5, 8.3, 8.3, 8.3, 8.3, 8.3 | |
| Size - Weight | 32” x 40” - 265 lbs | |
| Model | Rating |
|---|---|

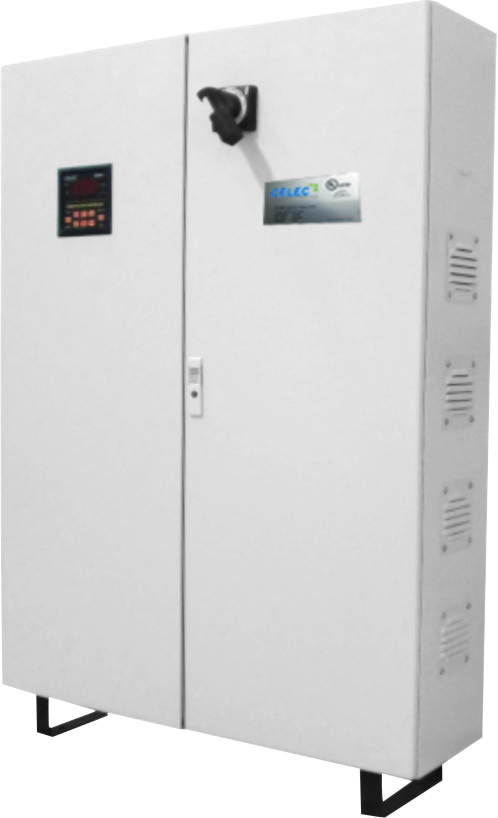

| S-100 | 100 kVAr |
208 V, 3-Phase
Industrial & Commercial
| Specifications | S-100 | |
|---|---|---|
| Device Rating | 100 kVAr | |
| Device Amps | 280 Amps. | |

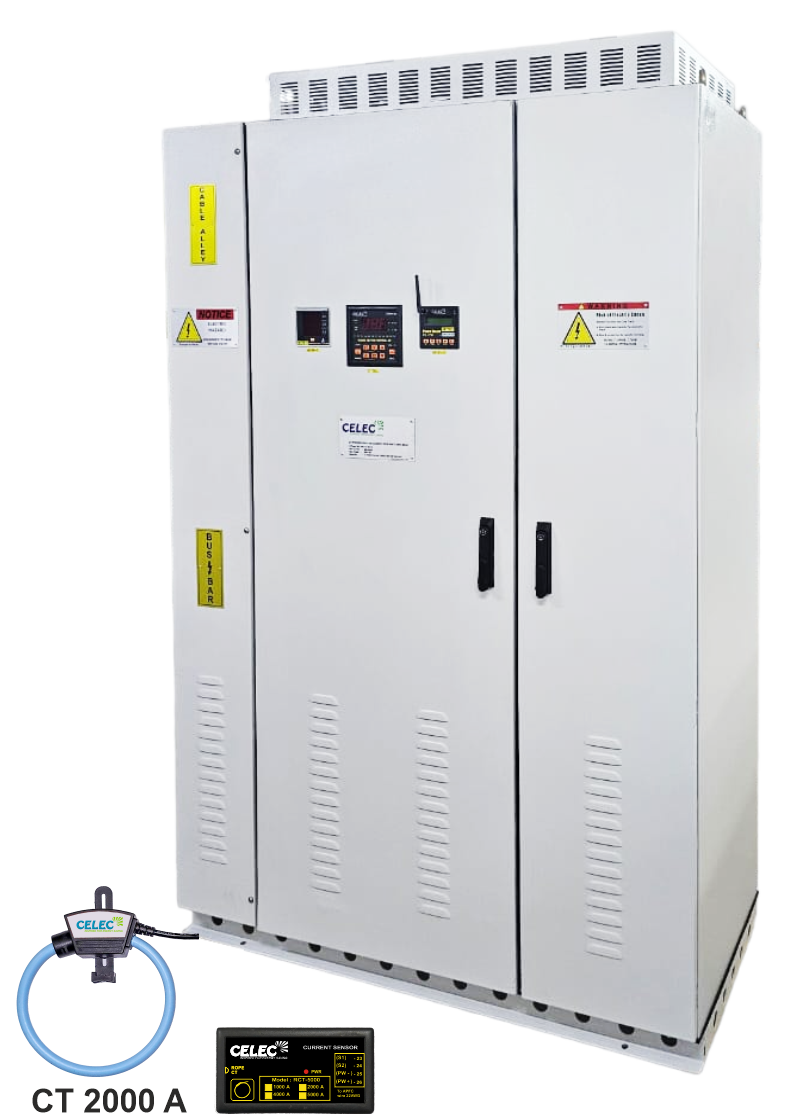

| CT Amps. | 2000 Amps. (Rope CT) | |
| Steps | 12 | |
| kVAr per Step | 8.32 x 12 | |
| Size - Weight | 40” x 60” - 485 lbs | |
| Model | Rating |
|---|---|
| M-21 | 21 kVAr |
| M-25 | 25 kVAr |
480 V, 3-Phase
Gas Stations & Small Commercial
| Specifications | M-21 | M-25 |
|---|---|---|
| Device Rating | 21 kVAr | 25 kVAr |
| Device Amps | 25 Amps. | 30 Amps. |
| CT Amps. | 200 Amps. (Rope CT) | 400 Amps. |
| Steps | 5 | 5 |
| kVAr per Step | 1,2,3,5,10 | 2,3,5,5,10 |
| Size - Weight | 12” x 8” - 15.5 lbs | 16" x 20" - 37.5 lbs |
| Model | Rating |
|---|---|
| M-65 | 65 kVAr |
480 V, 3-Phase
Industrial & Commercial
| Specifications | M-65 | |
|---|---|---|
| Device Rating | 65 kVAr | |
| Device Amps | 79 Amps. | |
| CT Amps. | 6000 Amps. | |
| Steps | 7 | |
| kVAr per Step | 2,3,5,10,15,15,15 | |
| Size - Weight | 24” x 30” - 137 lbs | |
| Model | Rating |
|---|---|
| M-100 | 100 kVAr |
| M-150 | 150 kVAr |
480 V, 3-Phase
Industrial, Supply Chain & commercial
| Specifications | M-100 | M-150 |
|---|---|---|
| Device Rating | 100 kVAr | 150 kVAr |
| Device Amps | 120 Amps. | 180 Amps. |
| CT Amps. | 600 - 1000 Amps. | |
| Steps | 7 | 8 |
| kVAr per Step | 5,10,10,15, 20, 20, 20 | 10, 20, 20, 20, 20, 20, 20, 20 |
| Size - Weight | 32” x 40” - 265 lbs | |
| Model | Rating |
|---|---|
| M - 240 | 240 kVAr |
480 V, 3-Phase
Industrial & Commercial
| Specifications | M - 240 | |
|---|---|---|
| Device Rating | 240 kVAr | |
| Device Amps | 289 Amps. | |
| CT Amps. | 1000 - 2000 Amps. | |
| Steps | 12 | |
| kVAr per Step | 20 x 12 | |
| Size - Weight | 40” x 60” - 485 lbs | |
| Model | Rating |
|---|---|

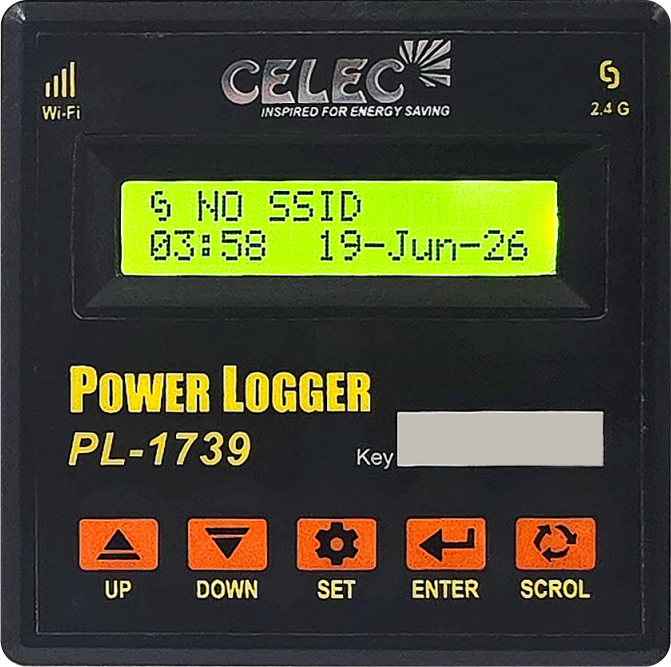

| PL-1739 | 240 VAC |
480 V, 3-Phase
Universal Power loggers designed to use with all Celec Power Factor Correction and APFC Panel onle.
| Specifications | PL-1739 | |
|---|---|---|
| Wi-Fi | 2.4 GHz, WPS | |
| Connection | TCP, HTTP | |
| Cloud | Celec Server | |
| Data | V, A, PF , kW, kVA, Saving | |
| Voltage | 240 VAC | |
| Model | Rating |
|---|---|
| H-330 | 330 kVAr |
| H-440 | 440 kVAr |
480 V, 3-Phase
| Specifications | H-330 | H-440 |
|---|---|---|
| Device Rating | 330 kVAr | 440 kVAr |
| Device Amps | 396 Amps | 529 Amps. |
| CT Amps. | 2000 Amps 3-Phase, Split Core CT | |
| Steps | 6 | 8 |
| kVAr per Step | 55 x 6 | 55 x 8 |
| Size - Weight | 66" x 56" - 1580 lbs | 79" x 56" - 2172 lbs |
| Voltage Rating | 480 V | |
* 240V Panels are available against order only.
