424 364 2640
15 kVAr
Total capacity
Reduce your Electric Bills
208 V
3-Phase, 60 Hz
5 steps
Individually controlled
250 A
Suitable facility
Model S-15
- Full Load Current
- 41 A
- Operating ambient
- Up to 104 F
- Dimensions
- 20" x 20"
- Mounting
- Type-1, Wall mounting
- Weight Net/Gross
- 73 / 82 lbs
- Sensing
- Split core Current Sensor
- kVAr Steps
- 1, 2, 4, 4, 4
Auto-selects the optimal capacitor combinations. Maintains target power factor in real time. Individual switching of each capacitor. Installs at the main panel in under 2 hrs.
- Controlled by Celec Digital Power Factor Regulator

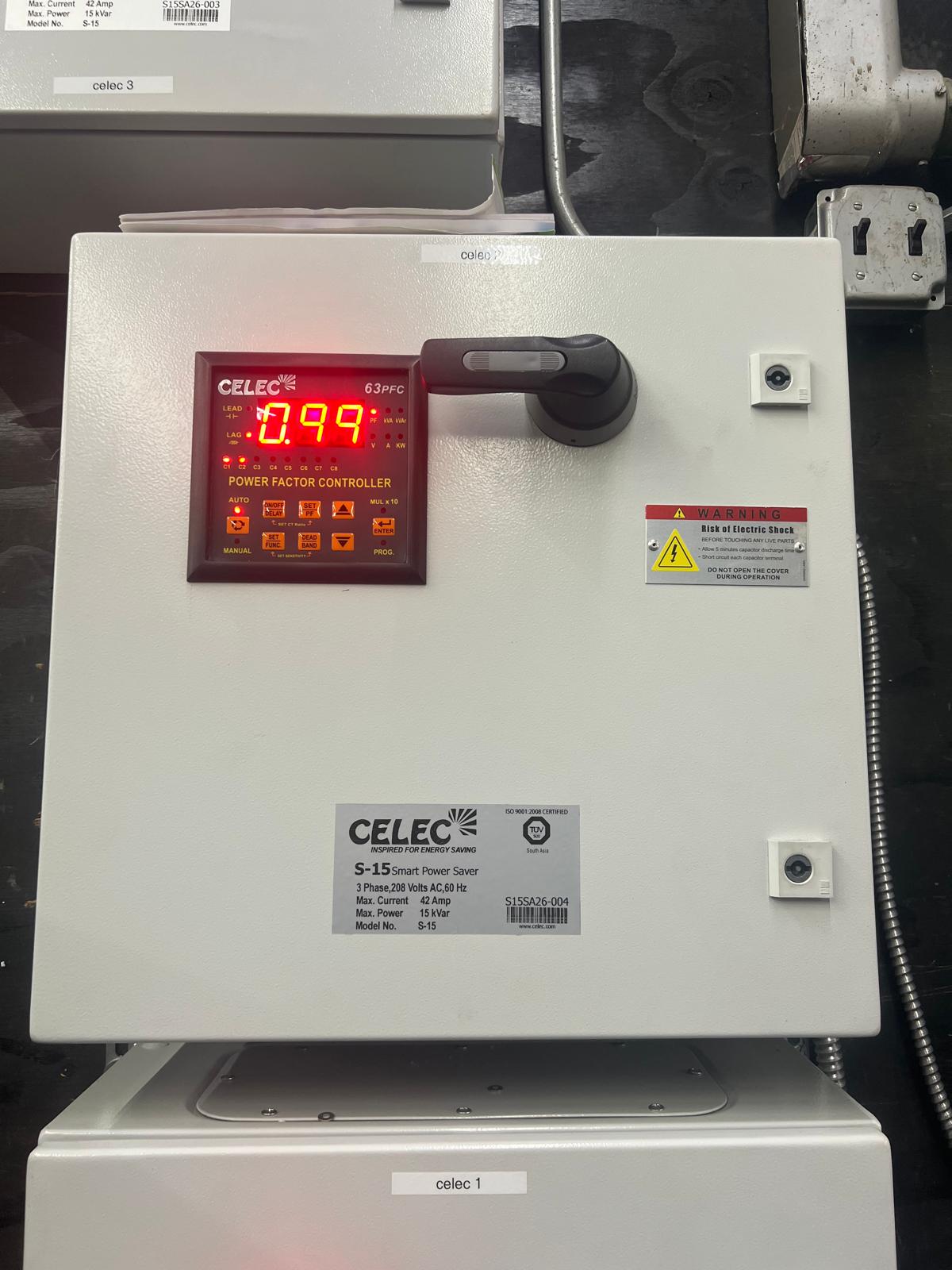

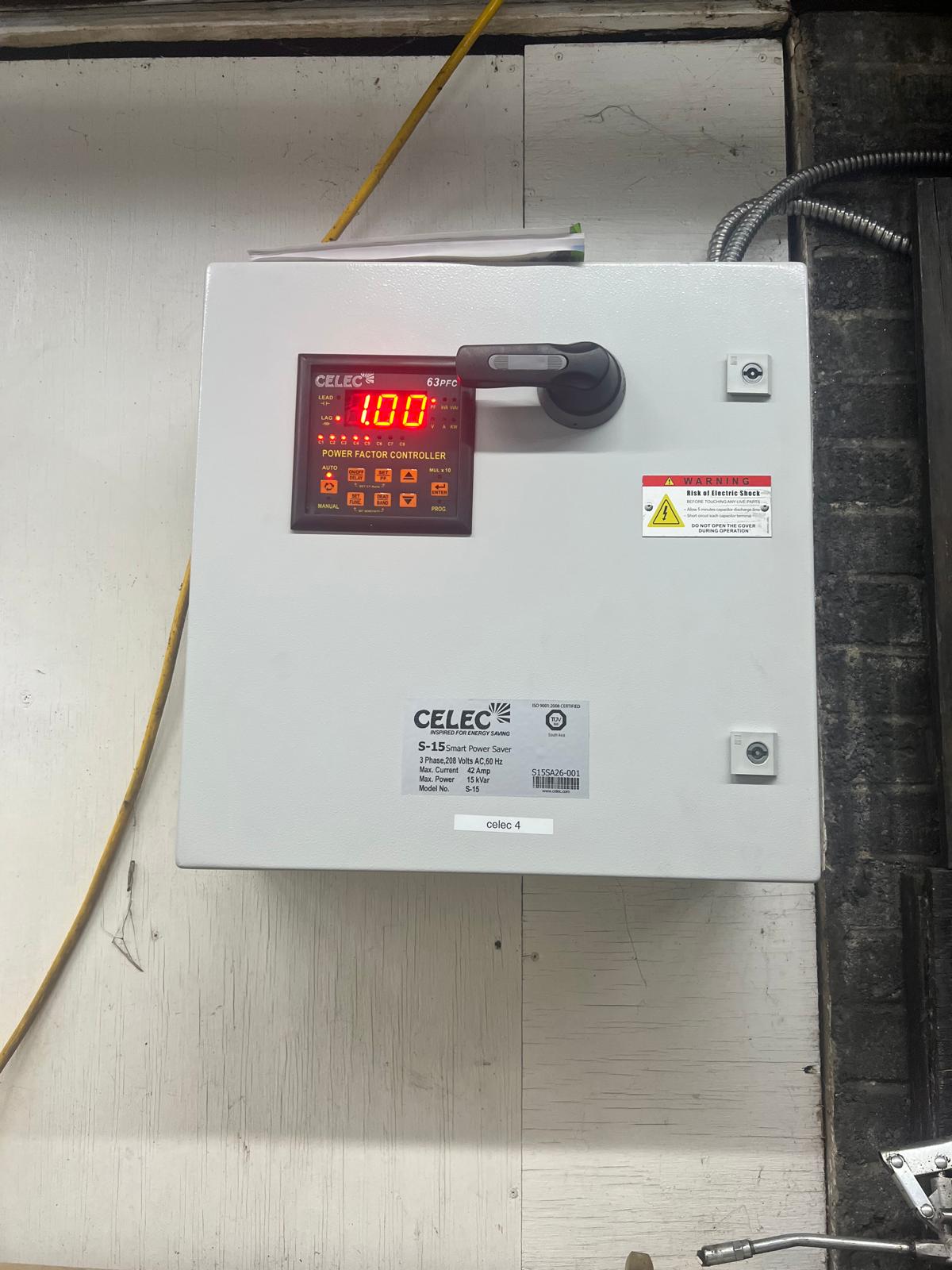

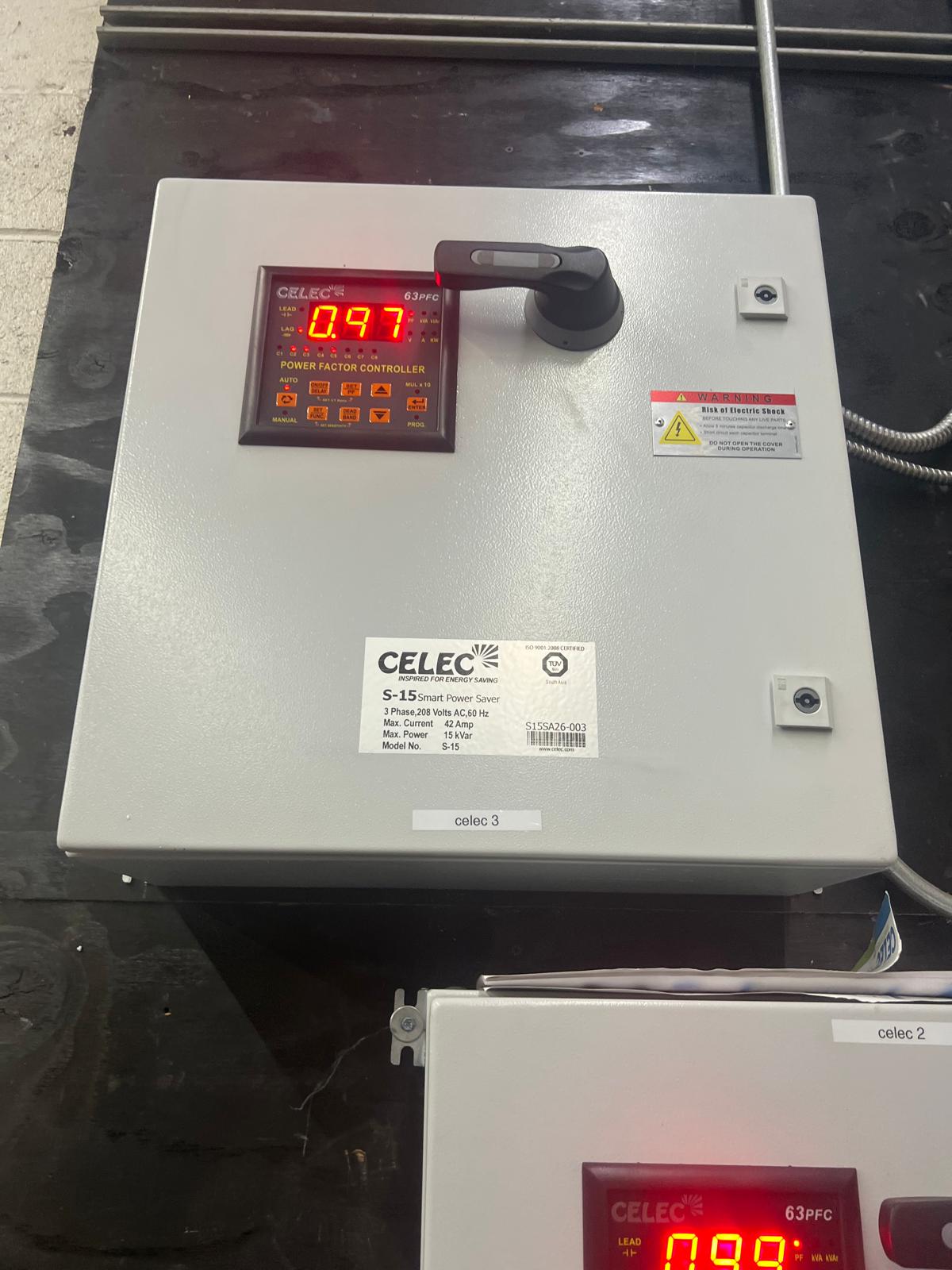

Celec Electricity Saver S-15 – 15 kVAR, 208V, 60 Hz Three-Phase Power Saving Device
The Celec Electricity Saver S-15 is an intelligent power factor controller for commercial and light industrial installations. It measures your load, adjusts capacitance automatically, and helps you reduce electricity bills, avoid power factor penalties, and protect connected equipment. It is designed for 208 V AC, 60 Hz, three-phase systems.
Celec is the first Indian company with UL-listed power factor correction products in the USA, backed by core expertise in power measurement and intelligent control.
How It Works
- Power factor improvement: Automatically sets the right capacitance level for your load.
- Reduced line current: Lower current on the main line means lower losses and less heat.
- Surge suppression: Protects against transient voltage spikes.
- Voltage filtering: Removes noise and impurities from the input supply.
Key Features
- Digital display of power savings
- Real-time monitoring of all electrical parameters
- Wi-Fi-enabled energy monitoring
- Easy installation with pluggable current sensors
- Optional power logger available on order
- Designed for load fluctuations, performing at both low and peak demand
- Suitable for 250–400 A systems
Benefits
- Lower electricity bills and removal of power factor and demand charge penalties
- Improved line voltage and power quality
- Longer life for motors, air conditioners, refrigerators, HVAC systems and other inductive loads
- Reduced heat in appliances and equipment
Compatible with solar panels, wind turbines and inverters
CELEC S-15 Technical Specifications
| Specification | Details |
|---|---|
| Model / Order Code | S-15 |
| Power Rating | 15 kVAR |
| Voltage Rating | 208 V AC, 60 Hz, 3-phase |
| Applicable Load | 250–400 A |
| Full-Load Current | 41.6 A |
| Switching Steps | 5 (1, 2, 4, 4, 4 kVAR) |
| Operating Ambient Temperature | Up to 40 °C (104 °F) |
| Enclosure | Type 1, wall mounting |
| Dimensions (W × H × D) | 20 × 20 × 8 in (508 × 508 × 203 mm) |
| Weight | 35 kg (77 lbs) |
Our Certificates
Celec Enterprises offers the Hi-tech and most efficient power-saving and laser land leveler solutions. We worked with Fortune 100 & 500 companies and government agencies globally to enhance power saving, land leveling, water, and green energy solutions.

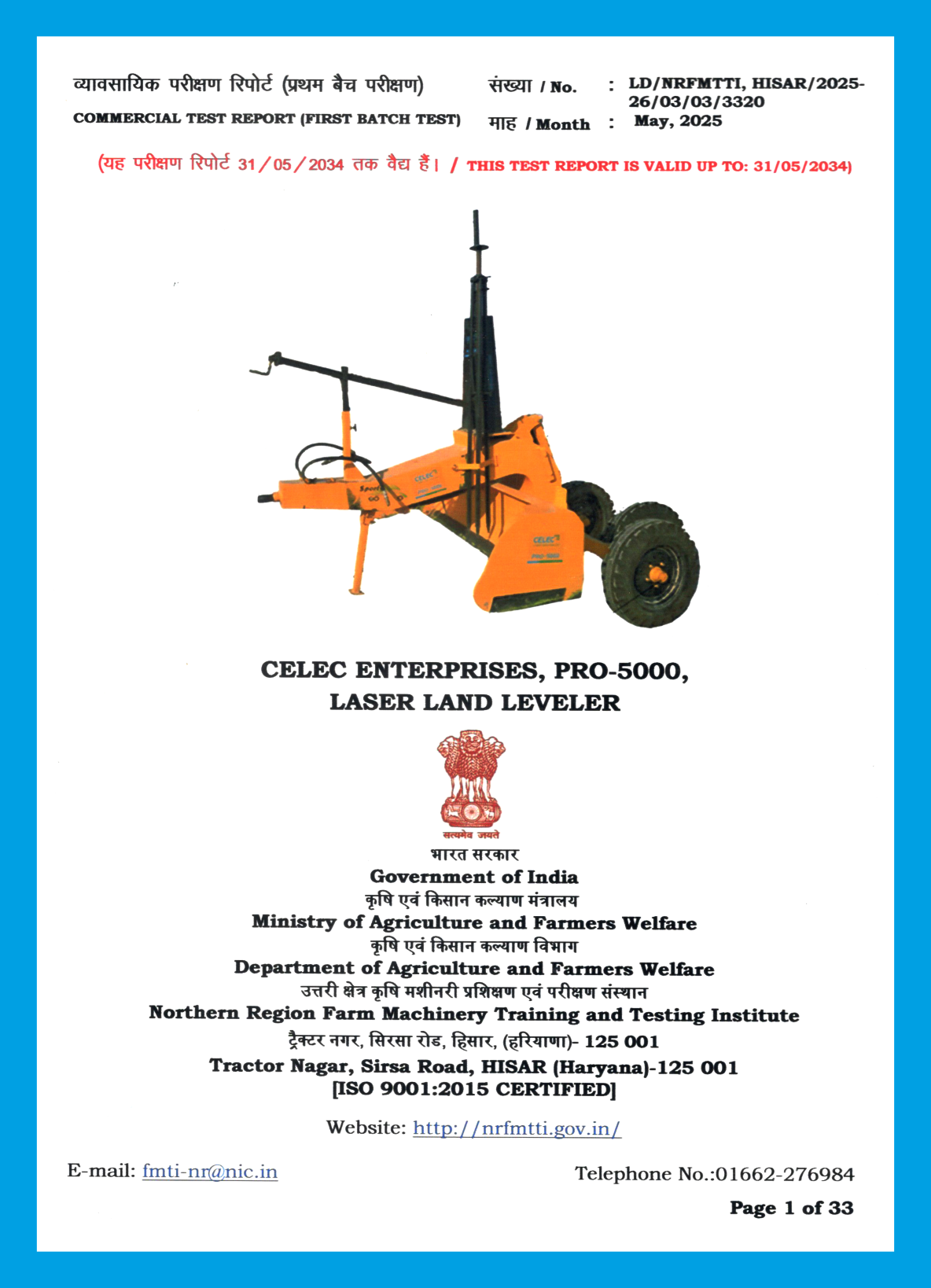

Celec Laser Land Leveler Test Report
