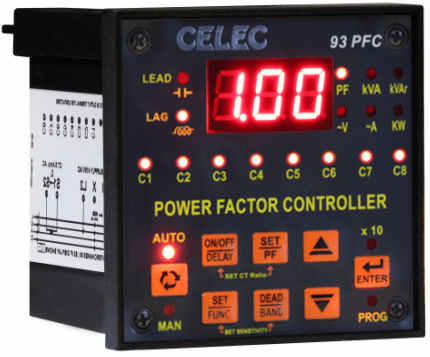

6 Channels APFC Relay 240V 93PFC

Celec is one of the leading manufacturers and exporters of Automatic Power Factor Correction  Relay.  APFC Relay  are used, where the power factor load fluctuates greatly with variation.

.
Channels 6
Voltage Input 240V, AC
Frequency 46 to 65 Hz
Dimensions 96 x 96 mm



Category: Tags: ,

Specification

 Voltage Input  240 VAC (110V, 415V against order)
 Current Input  10mA to 5.00 Amp (Isolated)
 Frequency  45 to 65 Hz
 Operating  Temperature  10° to 70°C
 Display Size  0.56″ LED Display
 Stages  4, 6, 8
 Target Power Factor Setting 0.80 lag to 0.80 lead
 Switching Time Setting
 (a) On Delay  1 to 60 seconds
 (b) Off Delay  1 to 60 seconds
 Dead Band Setting  0.01 to 0.20
 Ampere Sensitivity Setting  0.1 to 20 Amp
 Control Type  Binary FIFO
 CT Ratio Programming  Available
 Manual Operation  Available
 Display Parameters  PF, kVA, kVAr, Volt, Amp, KW
 Relay Contacts  5 Amp 250 VAC
 Dimensions  96mm (W) x 96mm (H) x 87mm (D)
 Bezel/Panel Cut Out  90mm x 90mm +/- 1mm
 Weight  0.7 Kg.

Description

6 Channels APFC Relay 240V 93PFC

6 Channels APFC Relay 240V 93PFC i s used, where the power factor load fluctuates greatly with variation. It check as shown above measurement of the power factor with set desired power factor and if it less than it gives the command to switch one step capacitor unit to get the desired set of power factor.

if  examined power factor is more than set value of power factor, then it gives the command to switch off connected capacitor steps until unless it reaches the desired set of power factor value.

In the panel, capacitors are connect and disconnect automatically with the help of automatic power factor correction relay.

https://www.youtube.com/watch?v=1nJlhQVxXBI&t=12s

APFC Relay use to automate capacitor bank and one of the most difficult roles in place where high and controlled amount of electricity is applicable.

This includes large factories or industries or schools or colleges.

APFC Relay is especially necessary for colleges; because students are learn on the basis of the various types of voltage and ampere fluctuations in practical labs.

However, all relays cannot be to accurate and therefore, there is a need of a very accurate and precise control relay.

Easy Installation of 6 Channels APFC Relay 240V 93PFC:

This APFC power factor control relay is very easy to install and does not in any way prove difficult to understand. Further, it is also small in size which only facilitates the ease of installation.

Intelligent Capacitor Status Indicator:

The intelligent capacitor status indicator of this power factor controller with display is one innovative idea. It indicates how many capacitors are switch on or off, thus adding an exclusive feature to the device.

Long Life (6 Channels APFC Relay 240V 93PFC)

The Celec display power factor controller has a very long life because of the durable materials used to manufacture it as well as  the device is also lightweight.

Highlights:

Controller provides sign and control to contactors to reach unity power factor capacitor taking care of discharge time and switching control APFC relay is the main control device in automatic capacitor banks designed to run 24 hour continue.

  • Brand: Celec
  • Warranty Period in months: 12 months
  • Dimension (l x b x h) in cm: 15 x 15 x 6
  • Product Type: Power Factor Control Relay
  • Colour: Black
  • Disclaimer: Product colour may slightly vary due to photographic lighting sources or your monitor settings

Features of 6 Channels APFC Relay 240V 93PFC:

Micro Controller Based TRUE RMS PF Measurement. Pluggable connectors, Plug and Play operation.

Auto / Manual operation:

Measurement sensitivity 0.1% (Class – 0.1) Bigger Display, Visibility From Distance.

Easy Installation:

User Friendly Program keys for Target PF, Switching On Delay, Off Delay and Manual Switching mode. Hunt free operation.

Multi Parameter front panel display parameters: PF, kvar, Current, Volt, kVA, KW, CT Ratio and Current Sensitivity.

In fact, its Available in 4, 6, 8, 12, 14, 16 stages Optional attachment:

  1. USB Data storage for 5 years
  2. Internet Connectivity and Online diagnose.
