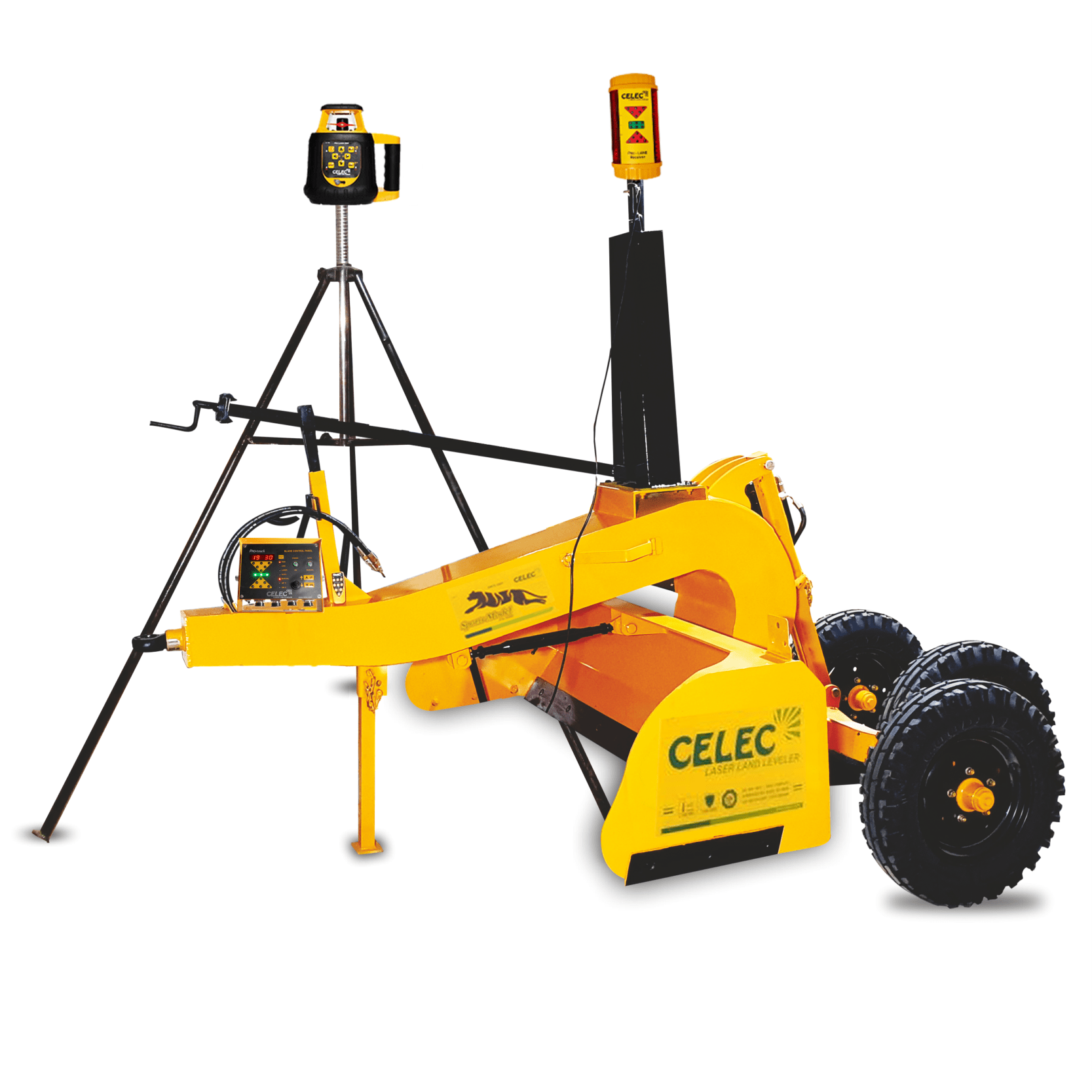

Laser Land Leveler Pro-7000

Celec Laser Land Leveler Pro-7000 is perfect for Land Leveling. Celec electronic system has a Long-range laser transmitter 1500 meters (750 radius) and Computerized self-calibration. Rotary laser level accuracy +/- 1 mm at 30 meters, Fuel consumption 4 Liters/hr. Wireless and touch control box and Laser receiver working fully under HT lines. Accurate working of the rotary laser at high temperature. In house manufacturing, Development, and testing center for Laser Land Levelers. Get the maximum yield of crops using Celec Laser Land Leveler (computer manjha).

 Working7 feet (2.1 mtr)
Suitable HP50 HP
Efficiency4.5 ltr/hour
 Range1500 meters
Hydraulic Pressure250 Bar Max
Operating Voltage12V DC

Laser Land Leveler

  • Working Width: 7 feet (2.1 meter)
  • Tractor Power: 50 HP
  • Efficiency 4.5 ltr/Hour
  • Working speed: 1500 RPM
  • Laser Range: 1000 mtr (500 mtr Radius)
  • Hyd. Pressure: 250 Bar Max
  • Blade: Special Steel 125×12 mm Reversible
  • Type: 600×16 Agriculture, 6.00-16
  • Operating Voltage: 12 Volt DC
  • Mast: Manual Gear/ Automatic Mast
  • Axel: 2 Axles, 4 Tyres, Cross Type

Rotary Laser Transmitter

  • Operating Range: 1500 meter (Radius 750 mtr)eature 1
  • Self – Leveling Accuracy**: ±1 mm @ 30 meters
  • Rotating Speed: 600 RPM
  • Laser Diode (type): 4.5 mW, Visible Red
  • Manual Tilt: Upto ± 7 degree Power 1 Watt
  • Battery: 12 V External
  • Battery Life: 72 Hours with Full Battery
  • Operating Temperature: 0 to 50° C
  • Storage Temperature: 0 to 60° C
  • Dust / Water Resistant: IP65
  • Protection: Over Voltage, Low Battery, Reverse polarity
  • Weight: 2.5 kgs
  • Dimensions: 200 x 250 x 175 mm

Rotary Laser Receiver

  • Voltage: 12V DC ± 20%
  • Max Current Consumption: 200 mA
  • System Accuracy: ±5 mm
  • Laser Requirement: All Rotating Lasers (HeNe or IR)
  • Dust / Water Resistance: IP65
  • Pulse Display: 10 Pulses per second
  • Protection: Reverse Polarity
  • Communication: 1 Wire
  • Weight: 2 Kg

Control Box

  • Display: Seven Segment LED, Visible in Day Light, Adjustable in Brightness
  • Switch: Tour Sensor Switch Suitable for Dusty Condition
  • System Accuracy: ±5 mm
  • Control: Programmable
  • Timer: Running Timer
  • Charge: For 12V Battery with Protection
  • Working Mode: 10 User Modes Programmable
  • Indications: Working Channel, Time & Errors (LED for Up, Down, Link & Auto)
  • Protection: IP65
  • Connectors: Silver coated, Chroe plated atll weather bend proof
  • System Voltage: 12V DC
  • Cable: 1.5 mm RR Kabel / Finolex

Description

Celec group is the first to introduce the technology of Laser Land leveler for Farms, Fields,/Lands in India with Subsidy approval. Celec is one of the leading manufacturer and exporter of Laser land levelers, which aims to ensure water conservation. The Celec has a dedicated workforce with an unwavering commitment to quality and building a vibrant organization. All the technologies were developed by CELEC  to meet the highest laser range, high efficiency, correct working of rotary laser at high temperatures, and low fuel consumption.

Laser Land Leveler Pro-7000 electronic system has been first tested and tried by our experts to ensure the quality. The simplicity and accessibility of the Celec laser land leveler allow operators to do daily maintenance tasks quickly. Celec electronic system has a rotary laser, laser level transmitter, touch control box, and rotary laser receiver.

Features of Laser Land Leveller Pro-5000:-

  • Finest Touch Control for easy working.
  • Computerized self-calibration of laser guided land leveler in the field.
  • High power laser beam working up to 1500 meters (750 Meters Radius).
  • Laser Level accuracy ±1 mm at 30 meter.
  • Battery backup for 3 days.
  • Laser land leveler working under high temperature and magnetic field.
  • Waterproof, dust proof and temperature proof to work all-weather.
  • Housing made from LM-6 aluminum, rubber and high impact plastic.
  • Overvoltage and Reverse DC polarity protection.
  • Low Battery Detection.
  • Field-Programmable Slope.
  • All operations on remote and keyboard.

Advantages of  Laser Land leveller over traditional land leveling:-

  • Good germination and growth of the crop, uniformity in crop maturity.
  • Reduce seed rate, fertilizer, chemicals, and fuel requirements.
  • Conserve Water, Uniform Distribution of water.
  • Reduction in time as well as water required to irrigate the field.
  • Precise level and plane soil surface, easy land preparation.
  • Uniform distribution of water in the field, less water consumption.
  • Uniform moisture environment for crops, less problems.
  • Improve field traffic ability for the later field operations.

Benefits of precise laser land leveling using Celec Pro-5000:-

    • Saves irrigation water up to 35%.
    • Reduced weed in agriculture field.
    • Increase in farming area up to 3.5%.
    • Increase in productivity up to 50%.
    • Reduced farm operating time by 10%.
    • Assist tap soil management.
    • Saves fuel / electricity used in irrigation.
    • It saves labor cost.
