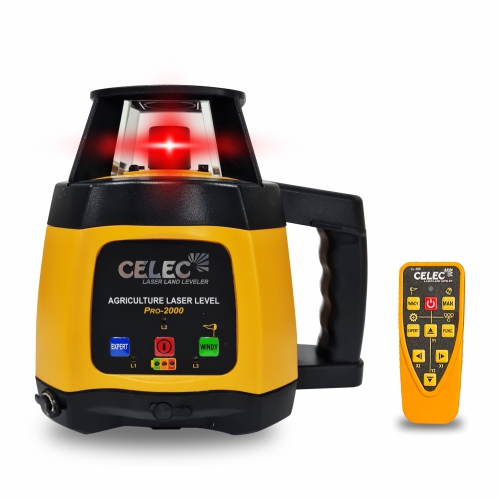

Laser Leveller Pro 2000

Celec Group is among the first companies to introduce the laser leveler technology for the farmers of India. The entire technology of laser leveler has been developed, tested and manufactured in our Ludhiana Plant. Celec has designed this product to achieve the highest laser range, high efficiency and accurate working of the rotary laser at high temperatures or at extreme windy conditions. Celec also understands that quality matters quite a lot to our customers and we promise our customers that we will provide the best quality products.

The Pro 2000 Laser Leveler Kit Includes:-

Celec Pro 2000 Laser
Touch Control Box
Laser Receiver
IR Remote
Control Box Remote
Cables

Pro 2000 Laser Leveler Features:-

Operating Range*	1000 meter (Radius 500 mtr)
Self – Leveling Accuracy	±1.5 mm @ 30 meters
Battery Life	72 Hours with Full Battery
Dust / Water Resistance	IP65
Operating Temperature	-20 to 50°C

Category: Laser Leveller Tags: Agricultural Machinery, Laser Land Leveler System, laser leveller

Laser Land Leveler

Working Width: 7 feet (2.1 meter)
Tractor Power: 50 HP
Efficiency 4.5 ltr/Hour
Working speed: 1500 RPM
Laser Range: 1000 mtr (500 mtr Radius)
Hyd. Pressure: 250 Bar Max
Blade: Special Steel 125×12 mm Reversible
Type: 600×16 Agriculture, 6.00-16
Operating Voltage: 12 Volt DC
Mast: Manual Gear/ Automatic Mast
Axel: 2 Axles, 4 Tyres, Cross Type

Rotary Laser Transmitter

Operating Range: 1500 meter (Radius 750 mtr)eature 1
Self – Leveling Accuracy**: ±1 mm @ 30 meters
Rotating Speed: 600 RPM
Laser Diode (type): 4.5 mW, Visible Red
Manual Tilt: Upto ± 7 degree Power 1 Watt
Battery: 12 V External
Battery Life: 72 Hours with Full Battery
Operating Temperature: 0 to 50° C
Storage Temperature: 0 to 60° C
Dust / Water Resistant: IP65
Protection: Over Voltage, Low Battery, Reverse polarity
Weight: 2.5 kgs
Dimensions: 200 x 250 x 175 mm

Rotary Laser Receiver

Voltage: 12V DC ± 20%
Max Current Consumption: 200 mA
System Accuracy: ±5 mm
Laser Requirement: All Rotating Lasers (HeNe or IR)
Dust / Water Resistance: IP65
Pulse Display: 10 Pulses per second
Protection: Reverse Polarity
Communication: 1 Wire
Weight: 2 Kg

Control Box

Display: Seven Segment LED, Visible in Day Light, Adjustable in Brightness
Switch: Tour Sensor Switch Suitable for Dusty Condition
System Accuracy: ±5 mm
Control: Programmable
Timer: Running Timer
Charge: For 12V Battery with Protection
Working Mode: 10 User Modes Programmable
Indications: Working Channel, Time & Errors (LED for Up, Down, Link & Auto)
Protection: IP65
Connectors: Silver coated, Chroe plated atll weather bend proof
System Voltage: 12V DC
Cable: 1.5 mm RR Kabel / Finolex

Description

Laser Leveller kit Pro 2000

Work Confidently with Laser Leveller Pro 2000 from Celec Enterprises Self Leveling, Long Range Transmitter, Highly Accurate with Windy function and the Innovative Cross-Axis Compensation Feature.

Package Includes: Rotary Laser transmitter, Rotary Laser Receiver, Control Box, Remote, Battery Charger, Manual Grade options.

Celec group is the first to introduce the technology of Laser Land Levelers for Farm, Fields/Lands in India with Subsidy Approved. Celec is one of leading manufacturers and exporters of Laser land leveller which aim to ensure water conservation. Entire technologies were developed by Celec to achieve the highest laser range, high efficiency and accurate working of rotary laser at high temperature.

Laser Land leveller Kit Pro-2000- Celec Laser has been firstly tested and tried by our experts to ensure the quality. The simplicity and accessibility of Celec laser land leveler allows operators to quickly perform daily maintenance tasks. Celec laser land levelers comes with rotary laser, Rotary laser transmitter, wireless remote, touch control box and rotary laser receiver.

Features of Laser Land Leveller Kit Pro-2000:

Waterproof, dustproof temperature proof to work all weather.
Housing made from LM-6 aluminum, rubber and high impact plastic.
Over voltage and DC polarity protection.
Low voltage safe working.
One touch self-calibration infield.
High power laser beam.
Leveling accuracy ±5 cm @ 100 meters.
Manual grade.
External battery tor 3 days backup.

Advantages of laser land leveling over traditional land levelling:-

Precise level and smoother soil surface, easy land preparation.
Reduction in time and water required to irrigate the field.
Uniform distribution of water in the field, less water consumption.
Uniform moisture environment for crops, less weed problems.
Good germination and growth of crop, uniformity in crop maturity.
Reduce seed rate, fertilizer, chemicals, and fuel requirements.
Improve field traffic ability for the subsequent field operations.
