1500 meters range Laser Leveler kit Pro-Land (Wireless Green Beam) electronic system pro 5000

Laser Leveler kit Pro-Land (Wireless Green Beam)

Celec Group is among the first companies to introduce the laser leveler technology for the farmers of India. The entire technology of laser leveler has been developed, tested and manufactured in our Ludhiana Plant. Celec has designed this product to achieve the highest laser range, high efficiency and accurate working of the rotary laser at high temperatures or at extreme windy conditions. We have also developed wireless technology for our Pro 5000 laser land leveler, which helps to monitor and control the Pro 5000 laser operation from the tractor mounted control box. Celec also understands that quality matters quite a lot to our customers and we promise our customers that we will provide the best quality products.

The Pro 5000 Laser Leveler Kit Includes:-

Celec Pro 5000 Laser
Wireless and Touch Control Box
Laser Receiver
IR Remote
Control Box Remote
Cables

Pro 5000 Laser Leveler Features:-

Operating Range*	1500 meter (Radius 750 mtr)
Self – Leveling Accuracy	±1 mm @ 30 meters
Battery Life	72 Hours with Full Battery
Dust / Water Resistance	IP65
Operating Temperature	0 to 50° C
Wireless Range	1000 meter

Category: Laser Leveller Tags: Agricultural Machinery, Laser Land Leveler System

Rotary Transmitter

Operating Range*: 1500 meter (Radius 750 mtr)eature 1
Self – Leveling Accuracy**: ±1 mm @ 30 meters
Rotating Speed: 600 RPM
Laser Diode (type): 4.5 mW, Visible Red
Manual Tilt: Upto ± 7 degree Power 1 Watt
Battery: 12 V External
Battery Life: 72 Hours with Full Battery
Operating Temperature: 0 to 50° C
Storage Temperature: 0 to 60° C
Dust / Water Resistant: IP65
Protection: Over Voltage, Low Battery, Reverse polarity
Weight: 2.5 kgs
Dimensions: 200 x 250 x 175 mm

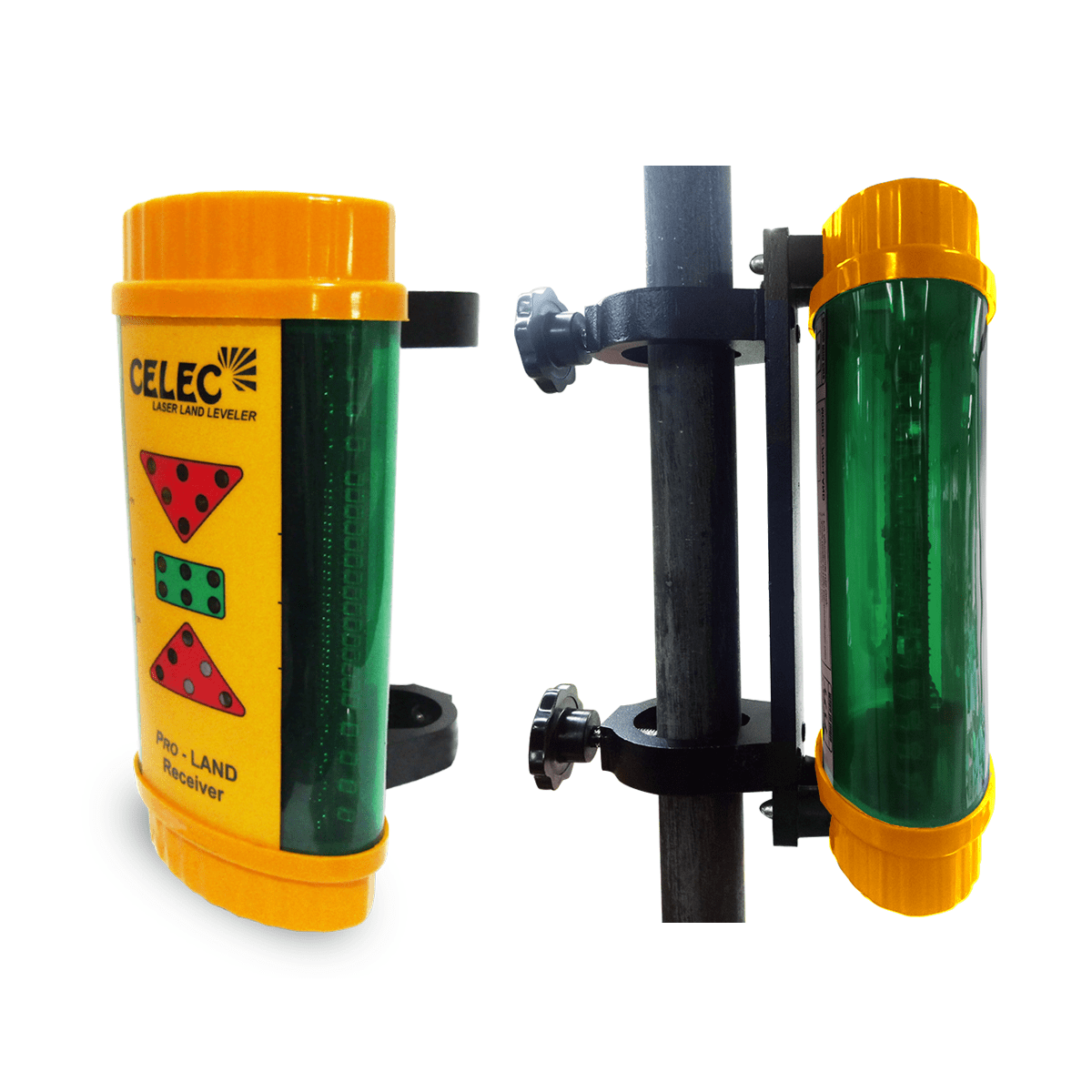

Receiver

Voltage: 12V DC ± 20%
Max Current Consumption: 200 mA
System Accuracy: ±5 mm
Laser Requirement: All Rotating Lasers (HeNe or IR)
Dust / Water Resistance: IP65
Pulse Display: 10 Pulses per second
Protection: Reverse Polarity
Communication: 1 Wire
Weight: 2 Kg

Control Box

Display: Seven Segment LED, Visible in Day Light, Adjustable in Brightness
Switch: Tour Sensor Switch Suitable for Dusty Condition
System Accuracy: ±5 mm
Control: Programmable
Timer: Running Timer
Charge: For 12V Battery with Protection
Working Mode: 10 User Modes Programmable
Indications: Working Channel, Time & Errors (LED for Up, Down, Link & Auto)
Protection: IP65
Connectors: Silver coated, Chroe plated atll weather bend proof
System Voltage: 12VDC
Cable: 1.5 mm RR Kabel / Finolex

Description

Work Confidently with Laser Leveler kit Pro-Land (Wireless Green Beam) from Celec Enterprises Self Leveling, Long Range, Highly Accurate with Windy function and the Innovative Cross-Axis Compensation Feature.

Package Includes Rotary Laser transmitter, Rotary Laser Receiver, Control Box, Remote, Battery Charger, and Manual Grade options.

Celec group is the first to introduce the technology of Laser Land Leveler for Farm, Fields/Lands in India with Subsidy Approved. Celec is one of the leading manufacturers and exporters of Laser land levelers, which aim to ensure water conservation. Entire technologies were developed by Celec to achieve the highest laser range, high efficiency, and accurate working of rotary lasers at high temperatures and windy conditions.

Laser Leveler Kit Celec Laser Pro 5000 green has been first tested and tried by our experts to ensure quality. The simplicity and accessibility of the Celec laser land leveler allow operators to quickly perform daily maintenance tasks. Celec laser land leveler come with a rotary laser, Rotary laser transmitter Pro-5000 red, wireless remote, touch control box, and rotary laser receiver.

Features of Laser Leveler kit Pro-Land (Wireless Green Beam):-

Waterproof, dust-proof, and temperature-proof to work in all weather.
Housing is made from LM-6 aluminum, rubber, and high-impact plastic.
Over-voltage and DC polarity protection.
Low voltage safe working.
One touch self-calibration infield.
High-power laser beam.
Leveling accuracy ±5 cm @ 100 meters.
Manual grade setting.
External battery for three days backup.

Advantages of Laser Leveler Pro-Land (Wireless Green Beam) pro 5000 :-

Precise level and even soil surface, easy land preparation.
Reduction in time and water required to irrigate the field.
Uniform distribution of water in the field, less water consumption.
Uniform moisture environment for crops, less weed problems.
Good germination and growth of crop, uniformity in crop maturity.
Reduce seed rate, fertilizer, chemicals, and fuel requirements.
Improve field traffic ability for the subsequent field operations.
