Laser Leveler kit Pro-Land (Wireless Green Beam)

Celec Group is among the first companies to introduce the laser leveler technology for the farmers of India. The entire technology of laser leveler has been developed, tested and manufactured in our Ludhiana Plant. Celec has designed this product to achieve the highest laser range, high efficiency and accurate working of the rotary laser at high temperatures or at extreme windy conditions. We have also developed wireless technology for our Pro 5000 laser land leveler, which helps to monitor and control the Pro 5000 laser operation from the tractor mounted control box. Celec also understands that quality matters quite a lot to our customers and we promise our customers that we will provide the best quality products.

The Pro 5000 Laser Leveler Kit Includes:-

  • Celec Pro 5000 Laser
  • Wireless and Touch Control Box
  • Laser Receiver
  • IR Remote
  • Control Box Remote
  • Cables

Pro 5000 Laser Leveler Features:-

Operating Range* 1500 meter (Radius 750 mtr)
Self – Leveling Accuracy ±1 mm @ 30 meters
Battery Life 72 Hours with Full Battery
Dust / Water Resistance IP65
Operating Temperature 0 to 50° C
Wireless Range 1000 meter

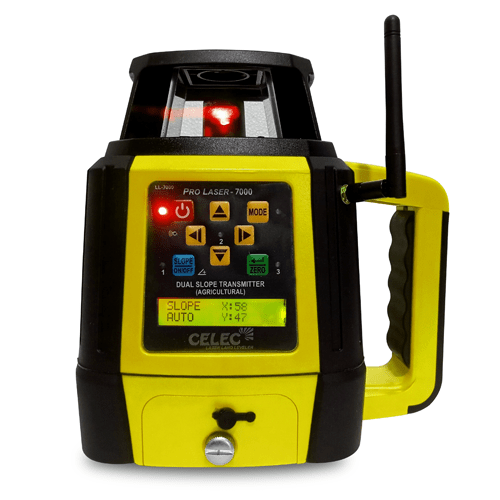

Rotary Transmitter

  • Operating Range*: 1500 meter (Radius 750 mtr)eature 1
  • Self – Leveling Accuracy**: ±1 mm @ 30 meters
  • Rotating Speed: 600 RPM
  • Laser Diode (type): 4.5 mW, Visible Red
  • Manual Tilt: Upto ± 7 degree Power 1 Watt
  • Battery: 12 V External
  • Battery Life: 72 Hours with Full Battery
  • Operating Temperature: 0 to 50° C
  • Storage Temperature: 0 to 60° C
  • Dust / Water Resistant: IP65
  • Protection: Over Voltage, Low Battery, Reverse polarity
  • Weight: 2.5 kgs
  • Dimensions: 200 x 250 x 175 mm

Receiver

  • Voltage: 12V DC ± 20%
  • Max Current Consumption: 200 mA
  • System Accuracy: ±5 mm
  • Laser Requirement: All Rotating Lasers (HeNe or IR)
  • Dust / Water Resistance: IP65
  • Pulse Display: 10 Pulses per second
  • Protection: Reverse Polarity
  • Communication: 1 Wire
  • Weight: 2 Kg

Control Box

  • Display: Seven Segment LED, Visible in Day Light, Adjustable in Brightness
  • Switch: Tour Sensor Switch Suitable for Dusty Condition
  • System Accuracy: ±5 mm
  • Control: Programmable
  • Timer: Running Timer
  • Charge: For 12V Battery with Protection
  • Working Mode: 10 User Modes Programmable
  • Indications: Working Channel, Time & Errors (LED for Up, Down, Link & Auto)
  • Protection: IP65
  • Connectors: Silver coated, Chroe plated atll weather bend proof
  • System Voltage: 12VDC
  • Cable: 1.5 mm RR Kabel / Finolex

Description

 Laser Land Leveler Kit Pro-Land

Work Confidently with Laser Land Leveler Kit Pro-Land from Celec Enterprises Self Leveling, Long Range, Highly Accurate with Windy function and the Innovative Cross-Axis Compensation Feature.

Package Includes: Rotary Laser transmitter, Rotary Laser Receiver, Control Box, Remote, Battery Charger, Manual Grade options.

Celec group is the first to introduce the technology of Laser Land Leveler for Farm, Fields/Lands in India with Subsidy Approved. Celec is one of leading manufacturers and exporters of Laser land leveller which aim to ensure water conservation. Entire technologies were developed by Celec to achieve the highest laser range, high efficiency and accurate working of rotary laser at high temperature.

Laser Land leveler Kit  – Celec Laser has been firstly tested and tried by our experts to ensure the quality. The simplicity and accessibility of Celec laser land leveler allows operators to quickly perform daily maintenance tasks. Celec laser land levelers comes with rotary laser, Rotary laser transmitter, wireless remote, touch control box and rotary laser receiver.

Working of Laser land leveler – https://www.youtube.com/watch?v=Aya7Dsm6_qg&t=13s

Features of Laser Land Leveler Kit Pro-Land:

  • Water proof dust proof temperature proof to work all weather.
  • Housing made from LM-6 aluminium, rubber and high impact plastic.
  • Over voltage and DC polarity protection.
  • Low voltage safe working.
  • One touch self-calibration infield.
  • High power laser beam.
  • Leveling accuracy ±5 cm @ 100 meter.
  • Manual grade.
  • External battery tor 3 days backup.

Advantages of laser land leveling over traditional land levelling:-

  • Precise level and smoother soil surface, easy land preparation.
  • Reduction in time and water required to irrigate the field.
  • Uniform distribution of water in the field, less water consumption.
  • Uniform moisture environment for crops, less weed problems.
  • Good germination and growth of crop, uniformity in crop maturity.
  • Reduce seed rate, fertilizer, chemicals, and fuel requirements.
  • Improve field traffic ability for the subsequent field operations.
